Cleveland Flash Cup Apparatus



Bitumen and Tar

Sub Category:

Flash and Fire Point

Product Group:

Cleveland Flash Cup Apparatus

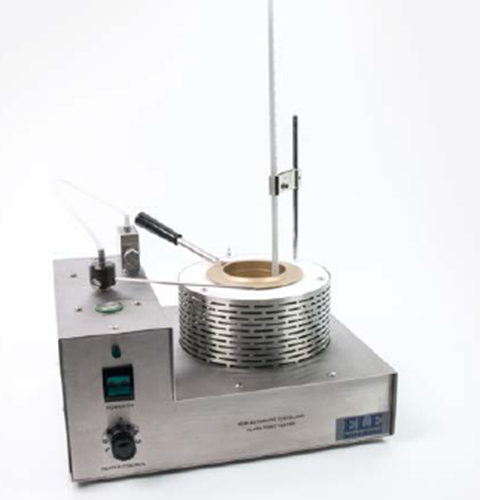

The ELE Semi-Automatic Cleveland Open Cup flashpoint Tester is equipped with an electrically heated cup (with a variable control to set temperature rise rate), a button operated and electrically driven sweep arm and a test flame for use on natural gas. Bench mounted, the unit is incorporated in an easy to clean stainless steel case.

**Not available for sale in the USA**

For 220 - 240 V AC, 50 - 60 Hz, 1 ph.

Description Cleveland Flash Cup Apparatus
Size (height x width x diameter) cm 33 x 31 x 29
BS 2000-36 Yes
EN ISO 2592 Yes
ASTM D92 Yes
IP 36 Yes



Temperature Range Ambient to 400°C
Power 500 W maximum
Ramp rate Variable, manually controlled
Voltage 220/240 V, 50/60 Hz
Size (HxWxD) 33 x 31 x 29 cm
Weight 6.5 kg
