Compaction Permeameter.

25-0607

Category:

Permeability

Sub Category:

N/A

Product Group:

Compaction Permeameter

101.6 mm

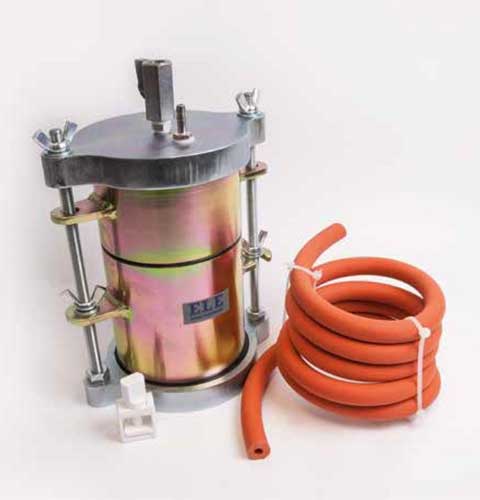

Description Compaction permeameter
Porous Stones 101.6 x 12.7



Specification

Mould Machined seamless steel tubing, plated
Capacity 101.6 x 116.4 mm (inside dia x h) 1/30 ft3
Collar 50.8 mm high, machined
Top Overflow valve assembly and water
connection
Base Cast aluminum, with inlet/outlet fitting
Porous stone (4") 101.6 x 12.7 mm (diameter x thickness)
Weights 5.4 kg



De-Airing Tank.

25-0611

Manufactured from transparent plastic with de-airing jet inlet and a flow outlet connection with flexible tubing. The tank is manufactured to withstand a reduced pressure and is suitable for direct wall mounting.

Soaking Tank.

25-0613

With fixed overflow. Used for containing permeability cell during test.

Standpipe Panel.

25-0609

Complete with three glass tubes of 1.5, 3 and 5 mm diameter bore, approximately 1.4 metres long. Supplied with metre scale and thickwalled flexible tubing. The glass tubes are fitted to a panel for wall mounting and connected to a 3-way outlet valve.Complete with three glass tubes of 1.5, 3…
