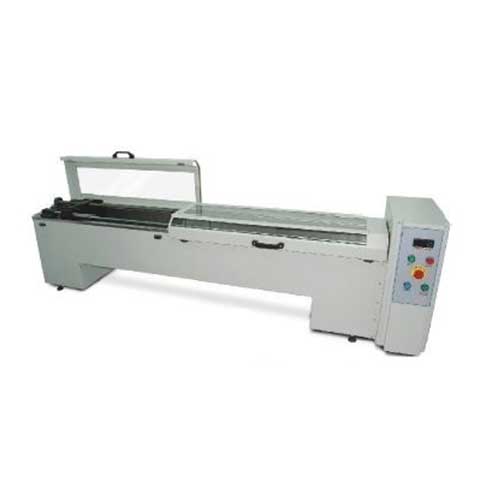

Ductility Testing Machine

46-4120

Category:

Design and Testing of Bituminous Mixtures

Sub Category:

Ductility

Product Group:

Ductility Testing

The Ductility Testing Machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a constant speed of 50 mm/min. It is designed for testing 3 specimens simultaneously. The Internal tank is made of stainless steel. The bath is fitted with an immersion heater in order to obtain (in normal conditions), the 25°C test temperature.

The Ductility Testing Machine comprises of speed control and water circulator to maintain the homogenous water temperature.

Elongation measurement through the motor encoder.

3 simultaneous load measurements with 18-bit resolution.

Speed control with servo AC motor between 0.01 to 100 mm/min.

Ethernet connection for computer interface.

Has 3 load cells with an accuracy of ±0.1N, with a maximum capacity of 300 N.

Failure conditions can be downloaded to the unit.



Complies with EN 13398, ASTM D113, ASTM D6084, AA SHTO T51, EN 13589, EN 13703, AASHTO T300.

Description Ductility Testing Machine
EN 13398 Yes
ASTM D113 Yes
ASTM D6084 Yes
AASHTO T51 Yes
Dimensions 300 x 1850 x 550 mm
Weight 80kg
Watts 1000 W
Power supply 220V 50-60Hz 1Ph

Base plate for Briquette Mould

46-4120/11

Briquette mould for Force Ductility machine

Single Briquette Mould, ASTM + AASHTO

46-4120/10

Briquette mould for Force Ductility machine. Complies to ASTM D113 + AASHTO T51.
