Specification

  • Max Temp: 1600°C
  • Volume : 3 litres
  • Heat up time : 42 mins
  • Dimensions (Internal)  : 120 x 120 x 205 mm (H x W x D)
  • Dimensions (External): 655 x 435 x 610 (905 - door open)
  • Configuration : Bench top
  • Max power : 4500 W
  • Holding power: 2300 W
  • Thermocouple type: R
  • Weight : 42 kg

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
NA

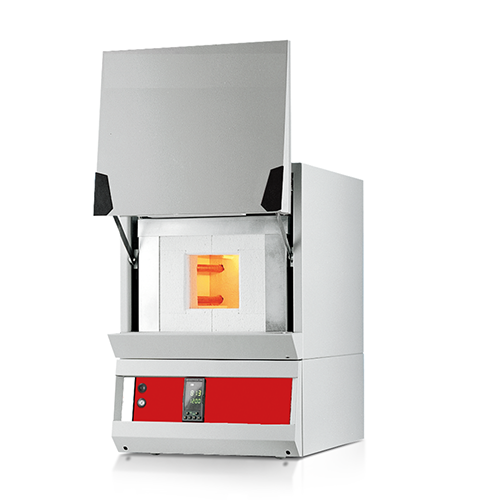

Silicon carbide heated high temperature chamber furnace which has a maximum operating temperature of 1600°C.

Robust construction and high quality elements provide rapid heating rates and a long reliable working life

Features:

  • 1600°C maximum operating temperature
  • Controller, with single ramp to set-point & process timer
  • 3 litre chamber volumes
  • Soft closing parallel action door
  • Silicon carbide heating elements provide long life and are able to withstand the stresses of intermittent operation
  • Have a cast alumina hearth
  • Low thermal mass insulation for high energy efficiency
