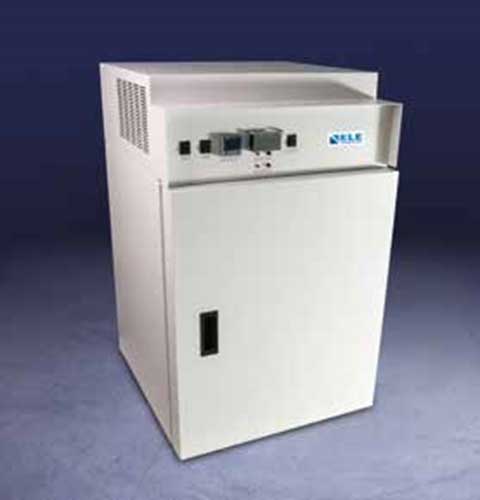

Humidity Cabinet BS EN 150 Litre Capacity 50Hz

39-1600/01

Category:

Mixing, Moulding, Curing and Strength

Sub Category:

Curing

Product Group:

Humidity Cabinet BS EN

  • Micro-processer controller for temperature and humidity for precise and reliable control
  • Stainless Steel interior with adjustable shelves
  • CFC-free polyurethane insulation to provide efficient thermal stability
  • 12mm access port

Prior to testing, EN 196 requires prisms to be cured for a period of at least 24 hours at 20 ±1ºC, 90 % RH minimum. The prisms are then de-moulded and stored under water for the required curing time, usually 48 hours, 72 hours, 7 and 28 days.

The Humidity Cabinet is built to a high specification and is designed for the early curing of mortar prisms prior to storing under water. Relative humidity up to 98%.

Please note 39-1300/24 Digital Recorder is optional, but must be ordered with the cabinet so they may be calibrated together.

Description Humidity Cabinet
Capacity, litres 150
Voltage Supply 220 - 240 V AC 50 Hz 1ph
Power Supply 220-240 V AC 50 Hz 1ph

Specifications

Temperature Range +5 °C to 60 °C
Temperature Control 0.2 °C at 20°C
Temperature Variation ± 0.5 °C at 20°C
Humidity Range 0-98%
External Dimensions (mm) 1075 × 635 × 660
Internal Dimensions (mm) 590 × 510 × 490
Shelves 4 Shelves hold 6 x 39-1100 moulds
Shelf Capacity 15 kg
Input Power 800 Watt
Weight 100kg

Humidity Cabinet 320 Litre Capacity Compliant to EN 196 and EN 459-2 with Digital Data Recorder

39-1300/01

This cabinet has a stainless steel interior and it is fitted with adjustable shelves. It also has sealed chambers making it suitable for humidity’s up to 98%. This can have an outer door heater to demist the inner toughened glass viewing door. Two 12 mm access ports are provided as standard.  Monitoring and control of both heating and cooling functions are performed with great accuracy, and achieves typical temperature stability of ±0.5°C. The LED digital display allows the temperature performance to be easily verified. A digitally set over temperature safety cut-out is fitted to all models. For 220 – 240 V AC, 50 Hz, 1 ph.

Humidity Cabinet to EN196 320 Litre Capacity with Digital Data Recorder

39-1300/06

This cabinet has a stainless steel interior and it is fitted with adjustable shelves. It also has sealed chambers making it suitable for humidity’s up to 98%. This can have an outer door heater to demist the inner toughened glass viewing door. Two 12 mm access ports are provided as standard.  Monitoring and control of both heating and cooling functions are performed with great accuracy, and achieves typical temperature stability of ±0.5°C. The LED digital display allows the temperature performance to be easily verified. A digitally set over temperature safety cut-out is fitted to all models. For 220 – 240 V AC, 60 Hz, 1 ph.
