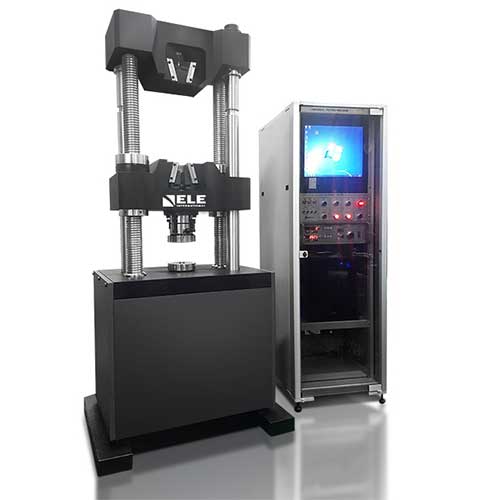

Hydraulic Type Universal Testing Machine 500 kN



Universal Testing Machines

Sub Category:


Product Group:

Hydraulic Type Universal Testing Machines

36-2419/05 is designed to serve the requirements of laboratories, research and development, quality control, manufacturers and educational fields. Plastic, textiles, fabric, wire, cord, rubber, wood etc. are ideal specimens for the 36-2419/05. Test methods such as tensile, compression, bending, peel, shear, puncture etc. are available on this machine.


  • Four to six column hydraulic type UTM
  • High precision load cell, class 1 and class 0.5 calibration
  • 1/50,000 force resolution
  • 0.5~60mm/min test speed (upgradable option)
  • User friendly remote for chuck control
  • Overload protection limit sensor
  • Emergency power cut off button
  • Interchangeable tensile insert grip system

Software features:

  • Close loop. Control of load, displacement, extension, stress and strain
  • Remote control via software, text execution, data analysis available through RS-232 port
  • Software updates and modification installation available via email or remote support
  • Diverse and robust configurations for automatic test end options, graph options, PID values, crosshead movement speeds etc
  • 15+ different Testing Methods including cyclic, creep, relaxation, keeping etc
  • View data and graphs of previously ran tests
  • Determine and analyze data points such as yield point, breaking point, modulous etc
  • Test report printing options include direct to printer or excel file export
  • Test report data can be configured to show only necessary data and to exclude unused data
  • Raw data analysis for detailed test data
  • Exportable to excel and customizable to show user required data


Description Hydraulic Type Universal Testing Machine
Frame Capacity 500 kN
Max tension range  500 kN
Force resolution  1/50,000
Stroke resolution  0.01 mm
Load range  2 steps (50/5 tonf)
Colum style 4 post
Controller  LCD Digital Indicator
Tensile - Max tensile distance  650 mm (including grips)
Tensile - Grip for round bar  Ø6 ~ Ø15, Ø14 ~ Ø26, Ø25 ~ Ø40 Length 90mm (1 set incl. + 1 set opt.)
Tensile - Grip for plate bar  0~15, 15 ~ 40 / Wide : 60, Length 90mm (1 set incl. + 1 set opt.)
Tensile - Grip for length  90 mm
Compression - Test stroke  475 mm
Compression - Dia plate  Ø160 mm
Bending test - Bending distance 50 ~ 500 mm
Bending test - Punch tips radius (ґ) 25
Bending test - Punch width  160, 180
Bending test - Roller diameter  Ø50
Table size  820 x 550 mm
Column to column  560 mm
Max ram stroke  200 mm
Crosshead speed  400 mm/min
Cross head motor  Gearedmotor 1/40, 0.4kW
Test speed  0.5 ~ 60mm/min (S/W Control Type)
Hydraulic pump capacity  2.7 cc
Total weight  2200 kg
Loading unit ( w x d x h)  1000 ×750 × 2460 mm
Hydraulic unit ( w x d x h)  550 × 500× 550 mm
Computer system unit ( w x d x h)  600 x 600 x 1700 mm
