Laboratory Vane Apparatus (Motorised)

26-2275/01

Category:

In-situ Sampling and Preparation

Sub Category:

Extruders and Soil Lathes

Product Group:

Soil Lathes

Laboratory Vane Apparatus with 4 Springs and 12.7mm Vane; Motorised

Comes with 38 and 110mm sample holder



The equipment is based on a design by the Transport Research Laboratory, England, and is available in hand or motorised versions. Stress is applied through the 12.7 x 12.7 mm vane by means of any one of four calibrated springs. The motorised version produces a shearing rate of 10° per minute.

Standards Compliance: BS 1377-7 EN DD ENV1997-2



Dimensions: (LxWxH) 0.28x0.27x0.64m

Voltage supply: 220-240 V 50 Hz

Attachment Clamp for 38 mm and 100 mm Sample Tubes

26-2289

Used with Laboratory Vane Apparatus

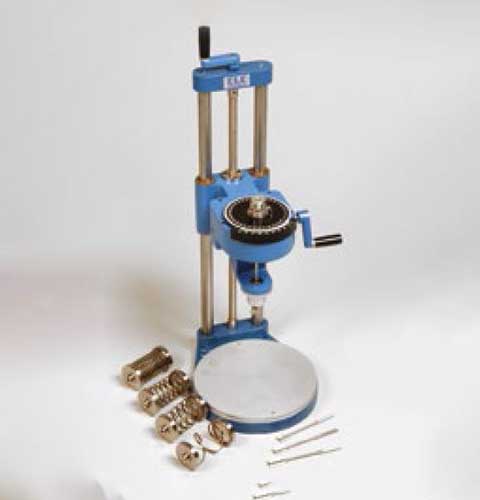

Laboratory Vane Apparatus with 4 Springs and 12.7mm Vane; Hand Operated.

26-2270

The equipment is based on a design by the Transport Research Laboratory, England, and is available in hand or motorised versions. Stress is applied through the 12.7 x 12.7 mm vane by means of any one of four calibrated springs.
