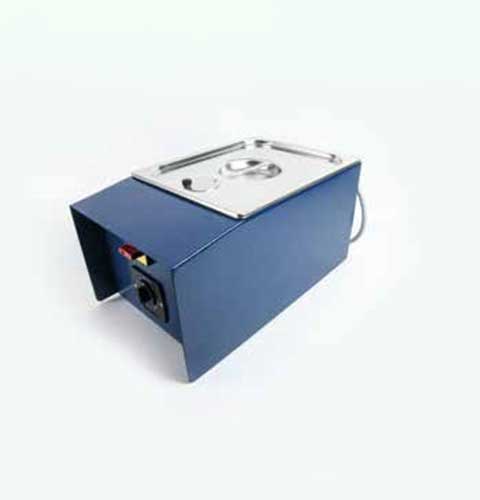

Le Chatelier Water Bath




Sub Category:


Product Group:

Soundness of Cement Paste by the Le Chatelier Method

Constructed with stainless steel inside chamber and exterior case in painted steel sheet, it can hold up to 12 Le Chatelier moulds (to be ordered separately) in the removable rack, supplied with the bath.

The bath reaches the boiling point in approximately 30 minutes. Now an original device keeps the bath temperature at the boiling point, by avoiding the water evaporation and assuring that Le Chatelier moulds remain covered by the water during all the test execution.

The bath is equipped with security device which cuts the power out in case of overheating of the resistance due to lack of water.

**Not available for sale in the USA**

Description Le Chatelier Water Bath
Power Supply 220 - 240 V AC, 50 - 60 Hz, 1 ph

Extensibility of Mould Apparatus BS


Conforms to BS 6463. The unit comprises a metal sleeve with a hook and set screw to fit over one of the mould pointers, and a clamp to fit onto the other pointer of the mould. Supplied complete with one weight 100 g ±1 g.

Tamping Rod


17 mm end diameter.
