Mechanical Analysis Stirrer 120vAC

« return

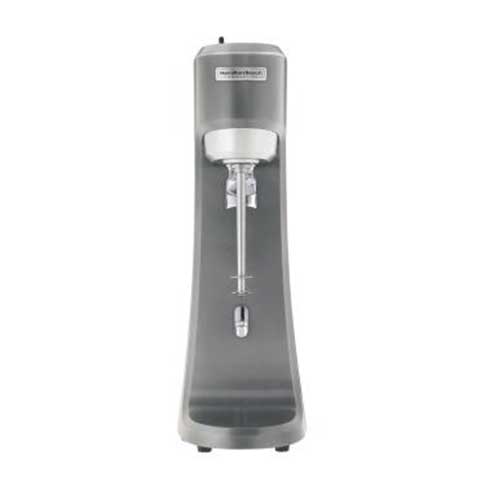

Mechanical Analysis Stirrer 120vAC

24-4132/02

Category:

Soils

Sub Category:

Particle Size Distribution

Product Group:

Mechanical Analysis Stirrer

Log in

You must log in to your ELE account to view prices and place your order.

110vAC, 50/60 Hz, 1ø. 125 Watts

Dispersion Cup 5 stationary baffles, permanently mounted; rounded bottom.
ASTM D422 Yes
AASHTO T88 Yes
Description Mechanical Analysis Stirrer 120vAC



Specifications

Motor Universal AC-DC; up to 75 cycles; 3-speed selectable.
Speeds at No Load Low: 13 ,000 rpm.
Medium: 16,000 rpm.
High: 18,000 rpm.
Housing Die-cast aluminum; stainless steel front panel; baked enamel finish.

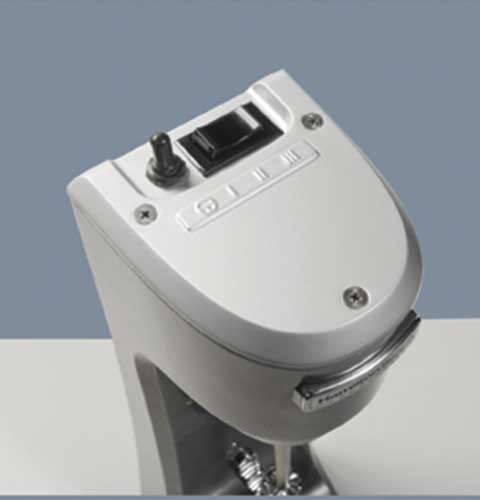

Controls Rotary speed control switch; on-off switch.

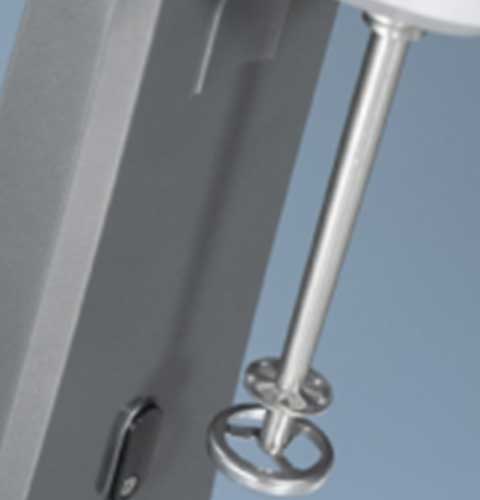

Mixing Paddle Disc-shaped; nickel-plated steel.
Dispersion Cup 4 stationary baffles, permanently mounted; rounded
bottom.
Dimensions 7” w. x 6-1/2” d. x 20” h. (178 x 165 x 508 mm).
Weight Net 15 lbs. (7 kg).

Includes Mixing Paddle and Dispersion Cup



Specifications

Motor Universal AC-DC; up to 75 cycles; 3-speed selectable.
Speeds at No Load Low: 13 ,000 rpm.
Medium: 16,000 rpm.
High: 18,000 rpm.
Housing Die-cast aluminum; stainless steel front panel; baked enamel finish.
Controls Rotary speed control switch; on-off switch.
Mixing Paddle Disc-shaped; nickel-plated steel.
Dispersion Cup 4 stationary baffles, permanently mounted; rounded
bottom.
Dimensions 7” w. x 6-1/2” d. x 20” h. (178 x 165 x 508 mm).
Weight Net 15 lbs. (7 kg).

Includes Mixing Paddle and Dispersion Cup

Mixing Paddle

24-4132/11

Net Wt. 1 oz. (28 g).

Soil Dispersion Cup

24-4132/10

Capacity 32 oz. Net Wt. 1 lb. (454 g).
