45-9330
Category:
Asphalt
Sub Category:
Specific Gravity
Product Group:
Specific Gravity (Rice) Test with 2,000 gram Vacuum Pyknometer, Specific Gravity (Rice) Test with 6,000 gram Vacuum Pyknometer, Digital Residual Pressure Manometer Non-toxic

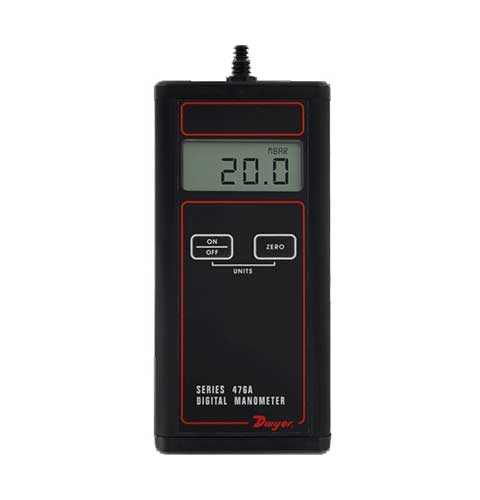

The digital residual pressure manometer is an accurate and non-toxic alternative to Mercury manometers used in the Rice Test. Ideal for field or laboratory use, the Model 45-9330 Single Pressure Digital Manometer measures low pressures from -20 to 20" w.c. (-37.4 to 37.4 mm Hg) with ±1.5% full scale accuracy.
| ASTM D2041 | Yes |
| EHS 9300 | Yes |
| AASHTO T209 | Yes |
| AASHTO T283 | Yes |
| Description | Residual Pressure Manometer |
| Service. | Air and compatible gases. |
| Accuracy. | +/-1.5% Full Scale @ 72F (22.2C). Includes linearity and repeatability. |
| Pressure Hysteresis. | +/-0.1% of Full Scale. |
| Pressure Limits. | 5 psig (0.34 bar). |
| Thermal Effect. | 0.05% F.S./F |
| Display. | 4 digit LCD (0.425"H x 0.234"W digits). |
| Power Requirements. | 9 V alkaline battery, installed non-functional, user replaceable. |
| Process Connections. | Barbed connection for use with 3/16" or 1/4" I.D. tubing. |
| Weight. | 10.8 oz (306 g). |
| Agency Approvals. | CE. |
