Sample Ejector

23-4085

Category:

Soils

Sub Category:

In situ Sampling and Preparation, Sample Extrusion and Trimming, Compaction and CBR, Compaction

Product Group:

Sample Ejector, Sample Ejector

• Fast sample extrusion from moulds and sampling tubes up to 7” (178 mm) long.
• 6,000 lbf. (26.7 kN) hand-operated hydraulic jack.
• Bench top design for use in both the laboratory and the field.
• All metal construction treated for rust resistance and long life.

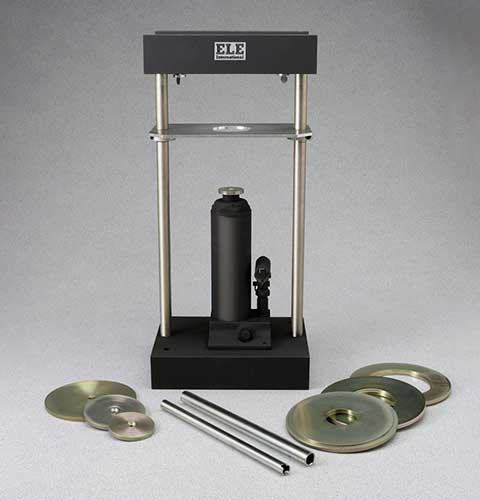

Fast extrusion and ejection of soil samples from moulds and short lengths of sample tubing are accomplished by the ELE Sample Ejector. Designed in a heavy duty bench style, the ejector has a pushing force of 6,000 lbf. (26.7 kN) which is developed through a hand operated hydraulic jack.

This unit is complete with accessories for ejecting samples from 4" (101.6 mm) or 6" (152.4 mm) diamter moulds, up to 7" (178 mm) long.

Log in

You must log in to your ELE account to view prices and place your order.

For 4" and 6" dia. samples up to 7" long.

2", 2.5" and 3" dia. ejector head and adapter plates available, order separately.

Dimensions w x d x h, ” 10-1/2 x 8 x 22-1/2
Description Sample Ejector



Specifications

Pushing Force 6,000 lbf. (26.7 kN).
Jack Hydraulic; hand-operated; 7” (178 mm) stroke.
Construction All metal; plated extrusion plates and piston discs; painted finish on housing and pump.
Dimensions 10-1/2” w. x 8” d. x 22 -1/2” h. (267 x 203 x 571 mm).
Weight Net 64 lbs. (29 kg); Shpg. 75 lbs. (34 kg).





Specifications

Capacity 2” (50.8 mm) and 3” (76.2 mm) shelby tubes up to 7” l. (178 mm); 4” (101.6 mm) and 6” (152 .4 mm)
molds.
Pushing Force 6,000 lbf. (26.7 kN).
Jack Hydraulic; hand-operated; 7” (178 mm) stroke.
Construction All metal; plated extrusion on housing and pump.
Dimensions 10-1/2” w. x 8” d. x 22 -1/2” h. (267 x 203 x 571 mm).
Weight Net 64 lbs. (29 kg); Shpg. 75 lbs. (34 kg).



2.5" Ejector Head and Adapter Plate

23-4085/10

For 2.5” o.d. x 2.416” tubes.

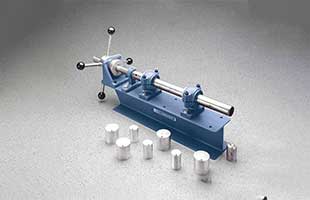

Horizontal Sample Ejector
