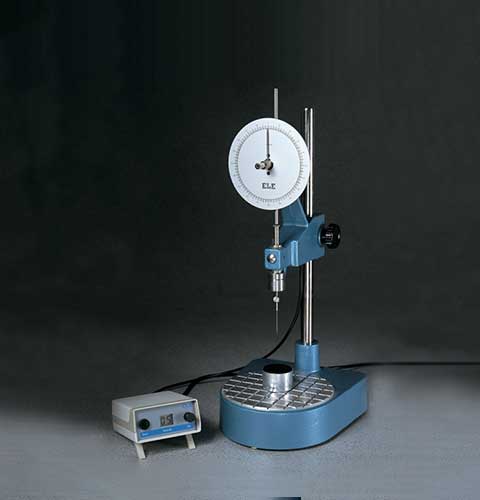

Semi-Automatic Penetrometer

46-5295/01

Category:

Bitumen and Tar

Sub Category:

Softening Point

Product Group:

Penetration Test

As 46-5290 but incorporates Digital Automatic Controller which releases the needle assembly. The time set is displayed by a bright, easy to read display.

**Not available for sale in the USA**

Description Semi-Automatic Penetrometer
Power Supply 220 - 240 V AC, 50 - 60 Hz, 1ph
BS 2000-49 Yes
EN 1426 Yes
EN 13179-2 Yes
ASTM D5 Yes
AASHTO T49 Yes
IP 49 Yes

Constant Temperature Bath 21 - 56ºC

46-5500/01

Conforms to Penetration Testing Standards. A bench mounting bath specially designed for the conditioning of bitumen samples prior to penetration tests. Incorporating a highly accurate thermostat, the bath maintains a temperature between 21°C and 56°C ± 0.1°C (at ambient). An integral cover and deep tray for penetration testing are supplied as…

Penetration Needle

46-5360/10

Hardened steel.

Penetration Needle

46-5340/C

Hardened steel, supplied with an UKAS verification certificate. For testing to BS 2000-49 and ASTM D5. (Pack contains 1 needle only).

Penetration Tin

46-5861

For penetrations below 200, approximately 55 mm diameter x 35 mm deep.

Transfer Dish

46-5800

For use with ELE Penetrometer 46-5295.
