26-2181
Category:
Direct Shear and Vane Tests, Soils
Sub Category:
Direct Shear and Vane Tests
Product Group:
Shear Box Assemblies, Shear Box Assemblies
•Manufactured from corrosion resistant materials
•Sample size 60 x 60mm x 25mm high meeting BS 1377
•Incorporates PTFE faced box separation screws to reduce friction
•Supplied complete with upper and lower porous plates and loading pad
•Suitable for quick undrained or drained/residual tests

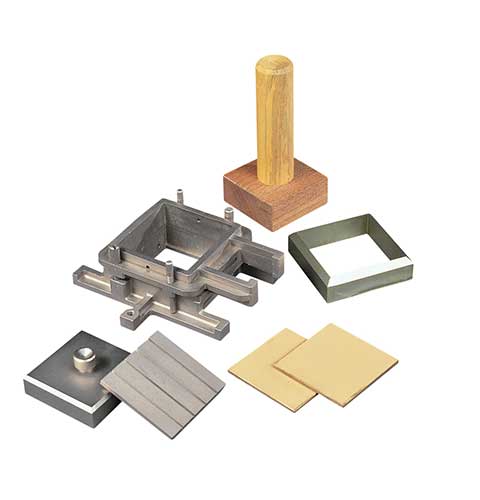

All shearbox assemblies are designed to fit the carriage of 26-2114 series Digital Direct/Residual Shear Apparatus. They are supplied complete with three porous plates, one retaining plate and a loading pad. The three sizes supplied comply with the relevant requirements of BS 1377 and ASTM D3080. All assemblies can be used for quick shear tests or drained/residual shear tests.
Optional accessories are available including specimen cutters and extrusion tools.
| Description | Shear box assembly |
| Specimen Size | 60 x 60 mm |
| Sample Size | 60 x 60 mm |
| BS 1377 | Yes |
| EN 1997-2 | Yes |
| ASTM D3080 | Yes |
| AASHTO T236 | Yes |
| Thickness | 25 mm |
| Weight, kg | 2 |
| Specimen area | 60 x 60 mm |
| Specimen thickness | 25 mm |
| Weight kg | 2 |
| Relevant standard | BS 1377 |
26-2197
•Manufactured from corrosion resistant materials•Sample size 100 x 100mm x 25mm high meeting BS 1377•Incorporates PTFE faced box separation screws to reduce friction•Supplied complete with upper and lower porous plates and loading pad•Suitable for quick undrained or drained/residual tests.
