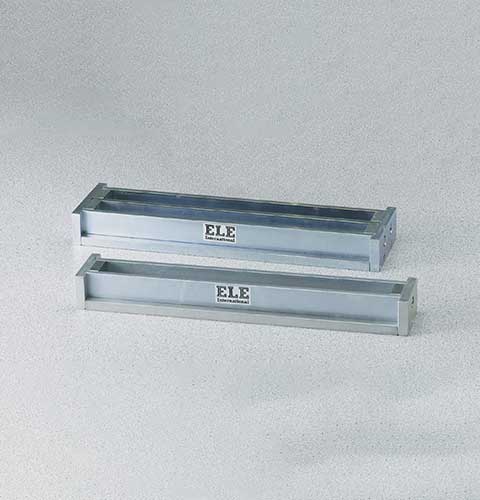

Single mould

34-8545

Category:

Cement

Sub Category:

Soundness, Moulding

Product Group:

Test Bar Moulds

4” x 4” x 10” (101.6 x 101.6 x 254 mm) gauge length.

Gauge Length 10” (254 mm) between inner ends of embedded contact points.
ASTM C141 Yes
ASTM C151 Yes
ASTM C157 Yes
ASTM C227 Yes
ASTM C490 Yes
ASTM C531 Yes
AASHTO T107 Yes
Description Single mould



Specifications

Construction Plated steel.
Gauge Length 10” (254 mm) between inner ends of embedded contact points.
Weight Net 22 lbs. (10 kg).



Contact Points

34-8548

1/4”(6.3mm) diam. x 3/4” (19mm) long. Pack of 100.

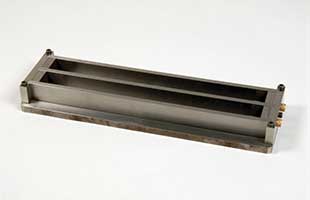

Two Gang Prism Mould Produces 1 Inch Square X 11 1/4 Inch Long Specimen (10 Inch Gauge Length)

34-8544

To produce specimens 1 inch square x 11¼ inches long to ASTM C490. The mould is constructed so that the gauge length can be set within ± 0.1 inch limits.
