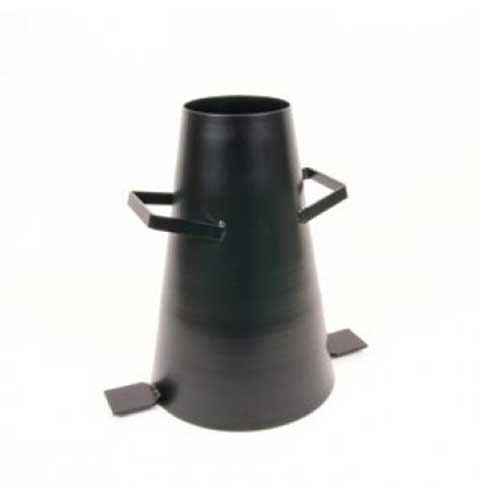

Slump Cone

34-0110

Category:

Fresh and Hardened Concrete Testing, Concrete

Sub Category:

Sampling, Consistency and Workability, Fresh and Hardened Concrete Testing, Sampling, Consistency and Workability

Product Group:

Slump Test, Slump Cones

Complies with EN 12350-2 (BS 1881-102), ASTM C143/C143M, AASHTO T119

Description Slump Cone
Weight, kg 1.3 kg
Weight, lbs 5.5
ASTM C143/C143M Yes
ASTM C192 Yes
AASHTO T119 Yes



Specifications

Construction Seamless, heavy-gauge spun steel; 0.45" (1.1 mm) min. Thickness.
Finish Plated for rust and corrosion resistance.
Dimensions 100 mm top diam. X 200 mm bottom diam. (without foot pieces) x 300 mm h.
Weights Net 5.5 lbs (2.5kg)



Base Plate for Slump Test.

34-0160

Complies to EN 12350-2 (BS 1881-102)

Cement Pan

34-0152

Slump Cone Funnel

34-0180

Complies to EN 12350-2 (BS 1881-102)

Tamping Rod 16mm Dia X 600mm long hemispherical at both ends.

34-0130

Steel, 600 mm long x 16 mm diameter, hemispherical at both ends. Please note this item is not graduated.

Stopwatch

81-0521
