Standard Penetrometer

46-5290

Category:

Bitumen and Tar, Asphalt

Sub Category:

Softening Point, Bitumen and Tar, Penetration

Product Group:

Asphalt Penetrometer, Bitumen Penetration Test, Penetration Test

Penetration readings are quickly taken using this simple to operate apparatus. The 150 mm diameter dial is graduated in 400 divisions of 0.1 mm. Supplied without needles and penetration tins.

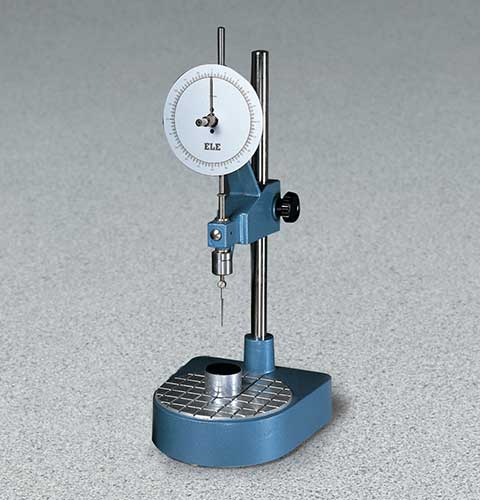

Model shown with sample container; not included, order separately.

Description Standard Penetrometer
BS 2000-49 Yes
EN 1426 Yes
EN 13179-2 Yes
IP 49 Yes
ASTM D5 Yes
AASHTO T49 Yes



Specifications

Dial Indicator 6” (150 mm) diam.; 400 mm x 0.1 mm.
Plunger Weight 47.5 g.
Needle ASTM Style (non-certified); one included.
Plunger Release Manual mechanism.
Weight Net 18 lbs. (8.2 kg).

Shown with transfer dish; not included, order separately.

Constant Temperature Bath 21 - 56ºC

46-5500/01

Conforms to Penetration Testing Standards. A bench mounting bath specially designed for the conditioning of bitumen samples prior to penetration tests. Incorporating a highly accurate thermostat, the bath maintains a temperature between 21°C and 56°C ± 0.1°C (at ambient). An integral cover and deep tray for penetration testing are supplied as…

Penetration Needle

46-5360/10

Hardened steel.

Penetration Tin

46-5860

For penetrations between 200 and 350, approximately 70 mm diameter x 45 mm deep.

Penetration Tin

46-5861

For penetrations below 200, approximately 55 mm diameter x 35 mm deep.

Transfer Dish

46-5800

For use with ELE Penetrometer 46-5295.
