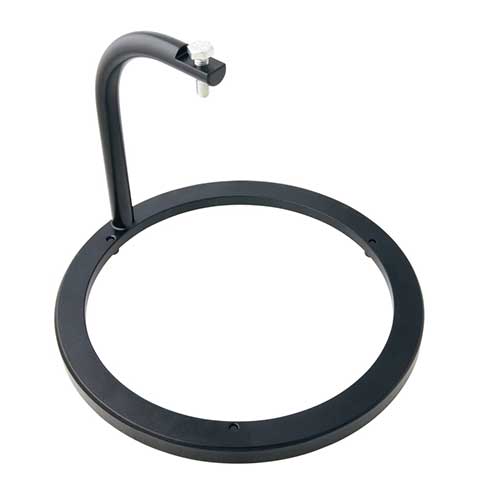

Swell Stand

24-9262

Category:

Compaction & CBR Test Equipment, Soils

Sub Category:

CBR Moulds and Accessories, Compaction and CBR, CBR

Product Group:

Expansion (swell) Test Equipment, Tripod Attachment

For mounting Swell Dial Gauge in position on CBR mould collar.

Log in

You must log in to your ELE account to view prices and place your order.

Requires dial indicator; not included, order separately

Description Swell tripod
Clamp Integral part of assembly; holds dial indicator.
ASTM D1883 Yes
AASHTO T193 Yes



Specifications

Construction Machined, one-piece cast aluminum.
Contact Head Integral part of ssembly; holds dial indicator.
Construction 2” l. (50.8 mm) included.
Weight Net 1 lb. (0.4 kg).



Dial Indicator - 1.0" Range

88-4100

1.0” x 0.001” divisions.

Electronic Digital Indicator, 1.0"/25.4 mm range

88-4220

Resolution of 0.0001" (0.002 mm)
