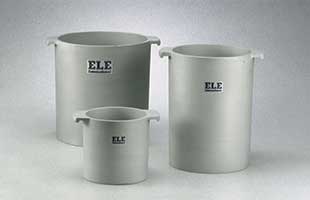

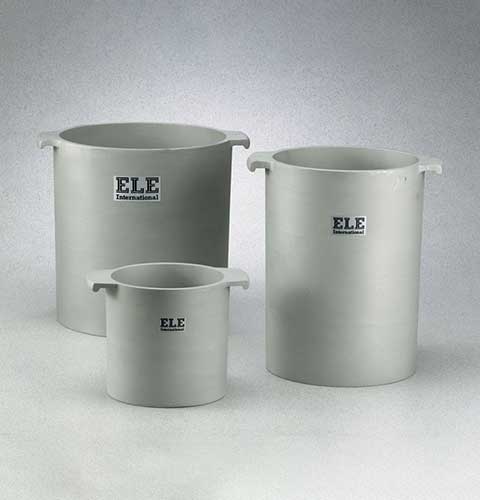

Unit Weight Measure 1 cu. Ft. Capacity

34-2856

Category:

Concrete, Aggregates

Sub Category:

Fresh and Hardened Concrete Testing, Density of Fresh and Hardened Concrete, Density, Voids and Bulking, Particle Density (specific gravity) and Water Absorption for Fine Aggregates

Product Group:

Unit Weight Measures, Unit Weight Measures

1 cu. Ft. Capacity
Capacity, g 1
ASTM C29 Yes
Description Unit Weight Measure 1 cu. Ft. Capacity

Specifications

ConstructionCast aluminum; machined inside; with handles.
Top RimMachined smooth; parallel with bottom.
Inner Dimensions14 ” (355 mm) i.d. x 11 .2”
(284.4 mm) inside h.
WeightsNet 26-1/2 lbs. (12 kg).

Unit Weight Measure 1/10 cu. Ft. Capacity

34-2850

1/10 cu. Ft. Capacity

Unit Weight Measure 1/2 cu. Ft. Capacity

34-2854

1/2 cu. Ft. Capacity

Unit Weight Measure 1/3 cu. Ft. Capacity

34-2852

1/3 cu. Ft. Capacity
