Volume Change Transducer Assembly 80ml Capacity Maximum Working Pressure 1700KPa

27-1641

Category:

Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation, Soils

Sub Category:

Measurement instrumentation, Instrumentation for Triaxial testing, Permeability, Electronic Instrumentation, Data Acquisition

Product Group:

Volume Change Measurement, Tri-Flex 2 One-Cell Permeability Test System, Volume Change Measurement, Volume Change Transducer

•Reversing valves to increase capacity
•Steel case for wall mounting and access to piping
•Supplied complete with calibration certificate

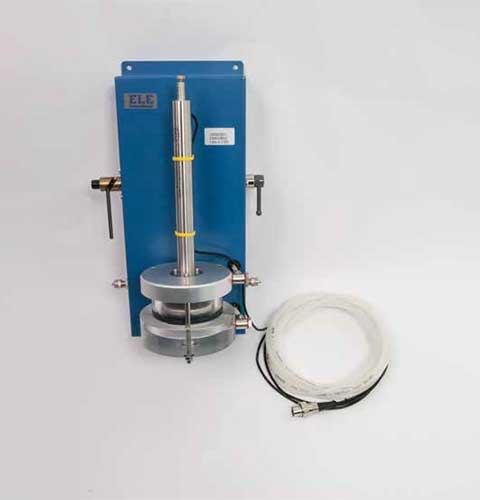

The Volume Change Transducer provides continuous measurements of volume change during the triaxial test. The assembly includes a valve to reverse the flow through the unit, providing increased capacity.

Description Volume change transducer assembly
Maximum Pressure, psi 250





Specifications

Maximum Pressure 250 psi (1,700 kPa).
Excitation 10V DC.
Output 1.25 Volts full range.
Capacity 80 cc x 0.1 cc sensitivity.
Case Steel; hinged for access to piping.
Connector 5-Pin DIN type.
Overall Dimensions LXWXH 0.44 x 0.3 x 0.27 m
Weight Net 11 lbs. (5 kg).
