Our list of current Automatic Data Acquisition - CBR products are listed below. If you cannot find what you are looking for, please contact us and we will try our best to help you.

DS7.2 California Bearing Ratio (CBR) Penetration Program for Windows 7, 32/64 bit

This program provides the classical data for the CBR test. Load and penetration are monitored simultaneously. The program tabulates the results and provides a graphical presentation report.

info »
27-1798

DS7.3 CBR Penetation for Windows 10

This program provides the classical data for the CBR test. Load and penetration are monitored simultaneously. The program tabulates the results and provides a graphical presentation report.

info »
27-2798

DSU Electronic Readout and Control System 220 - 240 V AC 50/60 Hz

· Download the full brochure here

· 4 channel automatic control and data-logging unit

· Automatic, dual-frame control

· Performs CBR, Marshall, Unconfined Compression, Direct and Residual Shear, One-Dimensional Consolidation and Unconsolidated Undrained tests

· LAN connection – software can be running anywhere on your server

· Never lose data from power fails – 2 gigabytes of non-volatile memory

· Extended warranty

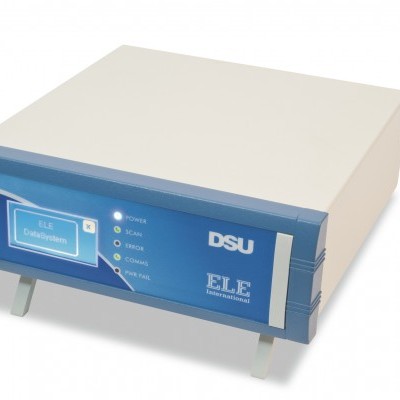

The Data System Unit (DSU) is a versatile instrument designed to accomodate the general logging requirements of geotechnical and materials testing engineers. Its intelligent interface allows the user to work with a range of different sensors.

info »
27-1300/01

GDU 8 Channel Data Acquisition Unit 220-240 V 50/60 Hz, 1 Ph.

The GDU is a stand-alone, multi-tasking, multi-channel data logger, that is reliable and powerful, enabling it to co-ordinate test data from the range of ELE transducers required for various test methods.

The ELE Geotechnical Software package (DS7.1 and following), in conjunction with the GDU and a range of transducers, are the two central components required to create a modern turnkey soil testing system. Being fully modular it can be adapted to a wide range of soil testing laboratory configurations.

• For performing CBR, Consolidation, Direct/Residual Shear and Total & Effective Stress Triaxial tests
• 8 Channels expandable to 32 for performing multiple, concurrent tests for cost savings
• Independent signal conditioning on each channel to maintain data accuracy
• Field-upgradeable software, meaning no downtime for future software and functionality upgrades
• PC link via RS232 (DS7.1 only), or RS232 and Ethernet P2P/LAN (with DS7.2 and following)

• Extended warranty







info »
27-1500/01
