Our list of current Concrete Mixture Pre-Qualification products are listed below. If you cannot find what you are looking for, please contact us and we will try our best to help you.

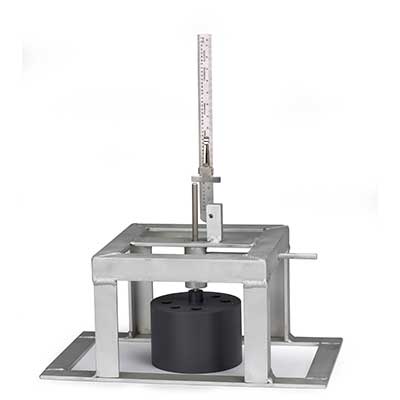

Penetration Apparatus

Includes Penetration Apparatus with a support frame, metal sleeve with set screw, penetration head, and a stainless steel scale.

Used for Penetration Test ASTM C1712.



info »
34-0630

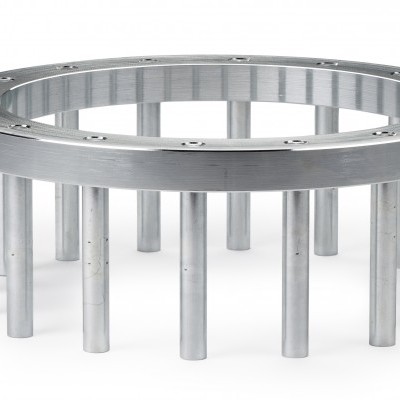

J-Ring

This test has been designed to determine the passing ability (flow-ability) of SCC concrete. Out test set includes a J-Ring fabricated in Zinc Plated steel for rust resistance and a Base Plate made of stainless steel for durability. The base plate includes a return bend lip for easy carrying and includes three concentric circles etched on the base plate to centre the ring.

ASTM C1621/C1621M

info »
34-0610

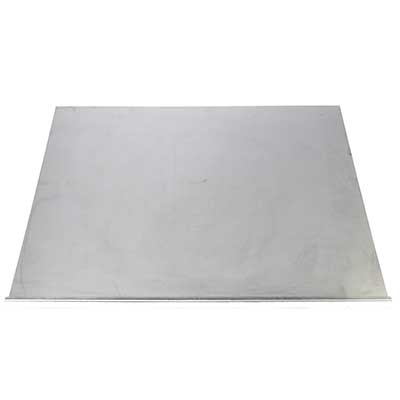

J-Ring Base

This test has been designed to determine the passing ability (flow-ability) of SCC concrete. Out test set includes a J-Ring fabricated in Zinc Plated steel for rust resistance and a Base Plate made of stainless steel for durability. The base plate includes a return bend lip for easy carrying and includes three concentric circles etched on the base plate to centre the ring.

ASTM C1621/C1621M

info »
34-0620

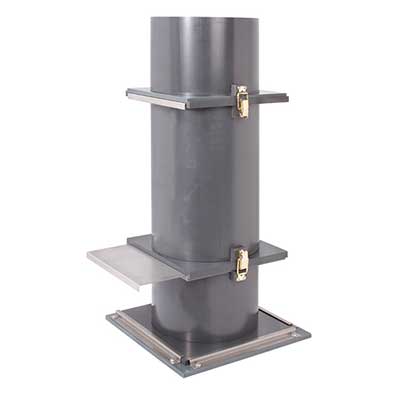

Static Segregation Column Mold

The Static Segregation Column Mold is used to measure cohesiveness of SCC. Concrete is placed in the column and allowed to stand undisturbed. After 15 minutes, the top and bottom sections are evaluated for the amount of aggregate retained on a No. 4 (4.75 mm) sieve and segregation is calculated.

Mold is constructed of 8" (200 mm) diameter PVC schedule 40 pipe, with a 15" (381 mm) square base plate and 8.5" (216 mm) wide stainless steel collection plates.

Includes three part column molds in schedule 40 PVC, base, and two stainless steel collection plates.

Complies to ASTM C1610/1610M.

info »
34-0640

Slump Cone Funnel

Complies to EN 12350-2 (BS 1881-102)

info »
34-0180
