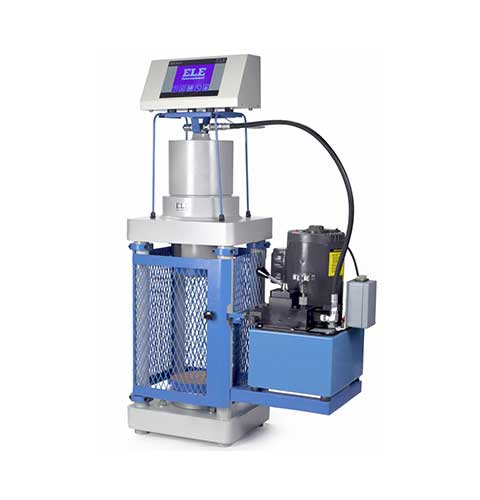

Accu-Tek Touch 250 Series Compression Machine 220V/50Hz

« return

Accu-Tek Touch 250 Series Compression Machine 220V/50Hz

36-0690/01

Category:

Concrete, Cement

Sub Category:

Compression Machines, Compressive Strength

Product Group:

Semi-Automatic Compression Machines, Accu-Tek Touch 250 Series

220vAC, 50 Hz, 1ø.

Description Accu-Tek Touch 250 Series Compression Machine 220V/50Hz
Upper Platen 6-1/4
ASTM C39 Yes
AASHTO T22 Yes



Specifications

Capacity 250,000 lbf (1,112 kN)
Frame Upper and lower steel plate sections with four steel uprights, threaded and welded into place; 14 .75” w.
x 12 ” d. x 37” h. (375 x 305 x 940 mm).
Ram 6-1/8” (155 mm) diameter; 3” (76 mm) travel.
Upper Platen Swivel seat type; 6-1/4” (15 9 mm) diameter.
Lower Platen 7” (178 mm) diameter.
Vetical Clearance 12 -1/2” (31 8 mm); or 14 -1/2” (368 mm) with lower spacer removed - (Upper and Lower platens installed).
Horizontal Clearance 9” (22 9 mm) between uprights.
Pump 3 h.p. (0.7kw) electro-hydraulic pump mounted within reservoir with overload protection.
Conrols Pump-mounted pressure compensated flow control valve with 4-position control lever and adjustable flow valve. Pump On/Off switch.

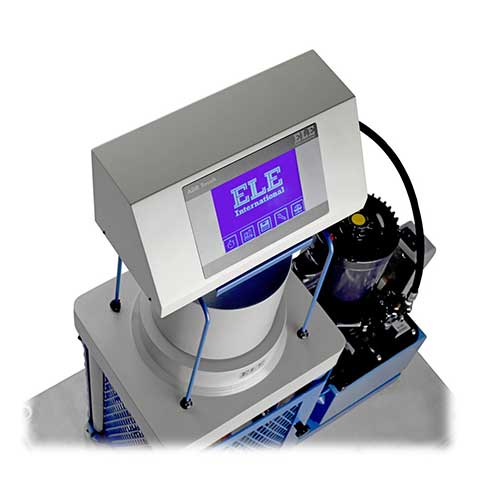

Display 5.7" (145 mm) touch screen display, incorporating full key pad (QWERTY type); pace deviation bargraph; automatic stress calculation; 2 GB of internal memory for storing thousands of test results; download data to PC via USB or to printer via RS-232 interface.
Range 2,500 to 25 0,000 lbf. (11 .2 to 1,112 kN).
Accuracy Factory calibrated to within 0.5% of reading
- from 1% to 100% of machine capacity.
Overall Dimensions 27 .5” w. x 12 ” d. x 45 ” h. (648 x 305 x 1,143 mm).
Weight Net 535 lbs. (243 kg).
