ADR Touch Control PRO 250/25 Auto Cement Machine

39-7160/01

Category:

Fly Ash, Mixing, Moulding, Curing and Strength

Sub Category:

Strength

Product Group:

Activity Index, ADR Touch Control Pro 250/25 Auto Cement Machines

• 250 kN maximum capacity
• Calibration accuracy to BS EN ISO 7500-1; ASTM E4
• Automatic loading cycle
• 25 kN low capacity frame supplied as standard
• Tests a wide variety of specimen sizes
• Tests mortar, lime, cement and Fly Ash
• Complete with compression/flexural jigs and platen sets
• Supplied with Windows® download software as standard

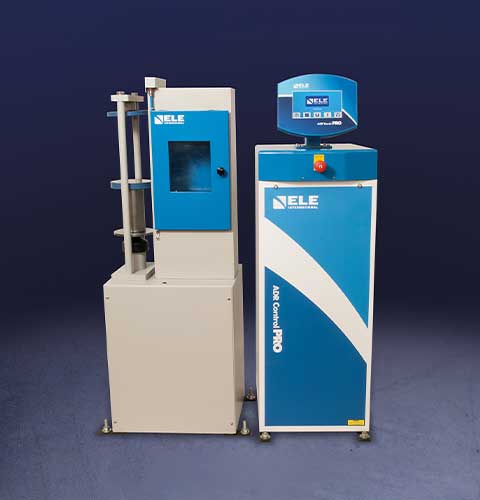

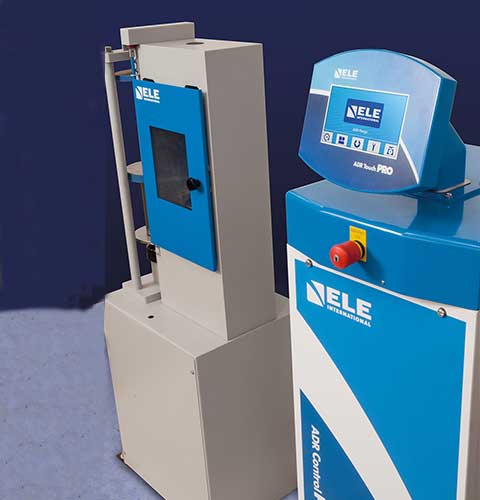

The ADR Touch Control PRO 250/25 Machine provides consistent automatic testing of a wide range of specimens. The machine comprises a standard ELE 250/25 kN load frame and the new ADR Touch Control PRO console and incorporates all the features included in the ADR Touch Control PRO series concrete testing machines.

As standard the machine is supplied with platens fitted to the load frame, compression jig with 40 mm and 50mm/2 inch square platen sets and flexural jig for testing 40.1 x 40 x 160 mm prisms.

The availability of the 25 kN low capacity load frame as standard extends the test capability of the machine for low strength compression or flexural testing.



**Not available for sale in the USA**

The ADR Touch Control PRO will deliver all the features and quality of the established ADR-Auto range, with its 20 year history, but with a new sleek design and additional capabilities. The console assembly consists of an ADR Touch Control PRO and power base which can be used with all existing concrete and cement frames



User interface

The new ADR Touch Control PRO has an improved user interface providing a high quality platform for testing that will enhance the performance of our compression machines. It now has a larger 7-inch colour touch screen with a higher definition display, allowing easier observation of test progress.  A favourites option is also available, allowing users to save the most common set-ups for immediate access, without the need for navigating through selection menus.



User flexibility

The ADR Touch Control PRO has a unique flexible head with rotation capabilities of 75-degrees and a 45-degree tilt, improving usability and comfort for individual users. It is available with four languages English, Spanish, Portuguese and French, making it even more user-friendly and accessible to a wider audience. The new LAN connectivity feature lets the operator use the PC based APP (ELE Logger) to download test results away from the test area. User flexibility has also increased with the new ADR Touch Control Pro as it can now be operated remotely, so tests can be initiated away from the test area. Many issues can be resolved quickly by our service team through the new remote diagnostics feature and updating to the latest version of software has never been easier.

Compatibility

The all new dual sensor capabilities allow users to test both concrete and cement samples on one frame. The ADR Touch Control PRO is compatible with all existing compression frames and upgrade kits are also available. The upgrade kits can be used to convert existing ADR-Auto consoles to the new Automatic Digital Control Readout.

Testing times

The new generation ADR Compression Machines have an increased control over the pace rate, which allows users to run the pace rate higher than average, but still within standard. This produces an average time saving of 10% for a typical 150mm cube sample.

Electrical

Reduced component count and no wire design results in increased reliability and serviceability. New low voltage interlocks and e-stop has increased safety. The ADR Touch Control PRO has the latest Arm Core Processor technology which has improved the processing power and speed.





Voltage Supply 220 – 240 V AC 50 Hz
Description ADR Touch Control Pro 250/25 Auto Cement Machine
EN 196-1 Yes
EN 459-2 Yes
EN 1015-11 Yes
EN 13454-2 Yes
ASTM C109 Yes
ISO 679 Yes
ASTM E4 Yes
EN 196-2 Yes

40mm Square Platen Set

39-5600/10

06.

Pair of Square Platens 2"

39-5600/11

06. For use on both 2" and 50 mm cubes.

Set of Distance Pieces

39-6220

and 100mm. Note: These items are required when testing above sample sizes NOT using the compression jig.

Compression Frame Jig Assembly

39-5600

06. This jig assembly is designed for the compression testing of 40 x 40 x 160 mm mortar prisms after breaking in flexure, also for the testing of 50 mm and 2 in square mortar cubes using the appropriate platens. The frame is fitted with a spherical ball seating assembly to which is attached the upper platen.   Note: Compression Jig Assembly shown with platen; not included; order separately.

Flexural Jig Assembly

39-6160

The Flexural Jig Assembly is designed for the Flexural Testing of 40 x 40 x 160 mm mortar prisms when fitted into ELE range of compression machines. The frame is supplied with a special ball seating assembly that is attached to the upper roller bearers.  Fitted with one upper and two lower roller bearers.
