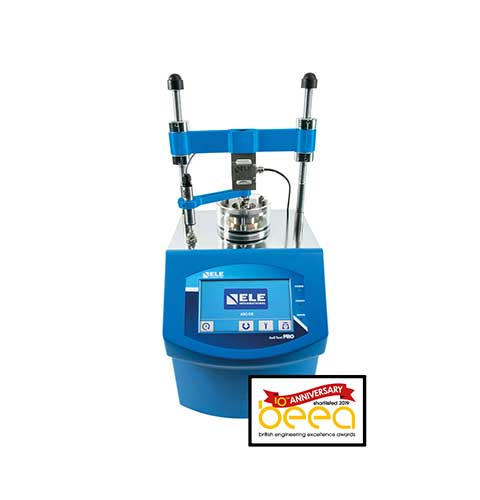

AUTO Soils Consolidator

25-0500/09

Category:

Consolidation Apparatus, Soils

Sub Category:

Automatic Consolidation, Automatic Consolidation

Product Group:

AUTO Soils Consolidator, AUTO Soils Consolidator

Designed and engineered for geotechnical laboratories to deliver new levels of efficiency in testing procedures.

The one-dimensional consolidation test is the most common, and sometimes referred to as the oedometer or incremental loading oedometer test. Radially constrained samples are loaded in a sequence starting with a stress close to the over burden pressure of the sample. The loading is then doubled for each stage; typically 4 or 5 times, with a final unloading sequence.

Now supplied complete with DS8.0 One-Dimensional Consolidation Software

Features:

- Available in one universal model 90-240 V AC, 50-60 Hz, 1 ph

- 7” waterproof, colour, graphical touchscreen

- Multi language

- No compressor – stepper motor improves accuracy across entire 15 kN load range

- Variable speed to suit sample type

- Can change target loads during a test

- Flexible reports

- Compatible with latest DS8 software

Customer benefits:

- Fully automatic – reduces testing time

- Compact footprint – saves laboratory space

- Save configurations for easy set-up of multiple cells and repeat tests

- Control up to 16 AUTO Soils Consolidator machines from one PC – improves laboratory efficiency

- Ability to include manual consolidation frames – avoids redundancy

- Wide range of sample cells

Please note: S type load cell and a linear variable displacement transducer (LVDT) must be ordered seperately

Description AUTO Soils Consolidator
Frame capacity  15 kN
Travel 15 mm
Standards BS 1377-5, superseded by ISO 17892-5, ASTM D2435/D2435M, AASHTO T216, ASTM D4546
Cell sizes (mm) 35, 50, 70, 75, 100, 112.8
Cell sizes (inches) 2, 2.416, 2.5, 3, 4
Max sample size  ≤ 112.8 mm
Max piston travel 26 mm
Speed 10 mm per minute
Fast approach speed 40 mm per minute
Max number of units per PC 16
Unit display High resolution, 7" colour
Dimensions 290 x 360 mm
Weight 32 kg
Clearance vertical/Horizontal 270/220 mm
Power supply 90-240 V AC, 50-60 Hz, 1 ph

100mm Stainless Steel Consolidation Cell

25-0510

s upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

112.8mm Stainless Steel Consolidation Cell

25-0520

s upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

2.416" Stainless Steel Consolidation Cell

25-0489

s upper, lower porous discs and cutting ring Complies to ASTM D2435

2.5" Stainless Steel Consolidation Cell

25-0490

s upper, lower porous discs and cutting ring Complies to ASTM D2435

2" Stainless Steel Consolidation Cell

25-0499

s upper, lower porous discs and cutting ring Complies to ASTM D2435

3" Stainless Steel Consolidation Cell

25-0469

s upper, lower porous discs and cutting ring Complies to ASTM D2435

35mm Stainless Steel Consolidation Cell

25-0444

s upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

4" Stainless Steel Consolidation Cell

25-0459

s upper, lower porous discs and cutting ring Complies to ASTM D2435

50mm Stainless Steel Consolidation Cell

25-0446

s upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

70 x 19 mm Stainless Steel Consolidation Cell

25-0449

s upper, lower porous discs and cutting ring Complies to Geospec 3

70mm Stainless Steel Consolidation Cell

25-0466

s upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

75mm Stainless Steel Consolidation Cell

25-0467

s upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

DS8.0 One-Dimensional Consolidation Software

27-1873

gside the latest version of ELE’s DataSystem soil test management software which is loaded with the current BS, ASTM and AASHTO standards, and is compliant with Windows 10. By automating the test procedure, DS8 lowers the cost of testing and frees staff time for other work. For example, manual systems rely on a user being available immediately when each step is completed, which causes inevitable delays. The AUTO Soils Consolidator also speeds up test times by simplifying the set-up procedure; intuitively taking the operator through the procedure, ensuring that the correct standard is applied and that the set-up is appropriate for the sample and cell. Loading and unloading increments can be defined by users and configuration templates can be stored so that subsequent tests can be set up quickly and easily. With Ethernet connectivity, DS8 is able to manage up to 16 machines simultaneously, so with a small footprint it is simple to set up and run a comprehensive geotechnical testing facility in a small laboratory. This connectivity also enables users to monitor tests remotely 24/7, and also provides an opportunity for remote service diagnostics. Real-time graphical outputs are available in the DS8 software, and operators now have the ability to make changes to tests as they proceed; target loads for subsequent stages can now be changed after a test has started, without having to restart the test from the beginning. The reporting capability of DS8 has been significantly expanded over previous versions. For example, users now have the ability to select consolidation plots to be included in the report, and templates can be slightly modified with results presented in a customisable pdf format.

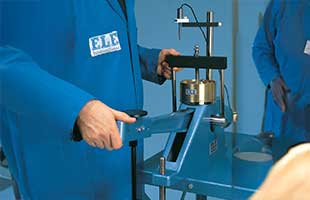

Consolidation Frame One Dimensional Consolidation Incremental Loading Device.

25-0402

• High capacity – 8800 kPa on 50 mm diameter specimens using 11:1 beam ratio• Triple beam ratio, 9:1, 10:1, 11:1• Compact unit ensures maximum space savingThe ELE Oedometer is rigidly constructed to ensure minimum frame distortion. The frame is designed to load the specimen through a yoke assembly and one of three alternative beam ratios. The beam is fitted with a counterbalance weight and beam support jack. The cell platform will accept the complete range of ELE consolidation cells and is fitted with a central spigot to ensure accurate centring of the cell under the loading yoke. Dimensions without hanger 711 x 203 x 508 mm (l x w x h). Weight 24 kg. PLEASE NOTE: 25-0402 does not come with a mounting stand, cell or a transducer

Pneumatic Consolidation Apparatus

25-0560

32 tsf capacity.
