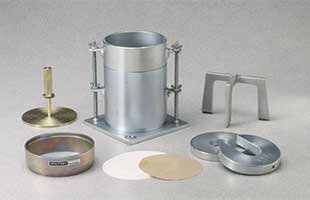

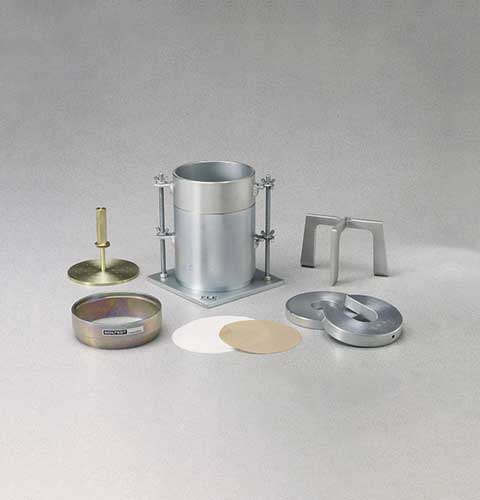

CBR Mould

24-9229

Category:

Soils

Sub Category:

Compaction and CBR, CBR

Product Group:

CBR Mould

Collar height, ” 2” h. (50.8 mm); fits both ends of mold.
ASTM D1883 Yes
AASHTO T193 Yes
Description CBR Mould



Specifications

Mould 6” i.d. x 7” h. (152 .4 x 177.8 mm).
Collar 2” h. (50.8 mm); fits both ends of mold.
Base Plate Perforated; fits both ends of mold.
Construction All steel; plated.
Weight Net 20 lbs. (9 kg).



ASTM Cutting Collar.

24-9236

To fit ASTM CBR mould body, manufactured with a cutting edge to enable undisturbed samples to be taken in the field.

ASTM Spacing Disc.

24-9238

150.8 mm diameter x 61.4 mm deep.

Filter Screen 150mm Dia with 0.15mm Mesh.

24-9240

150 mm dia, 150 μm mesh for use with ASTM mould.

Circular Surcharge Weight 10 lb

24-9247

10” o.d. (254 mm).

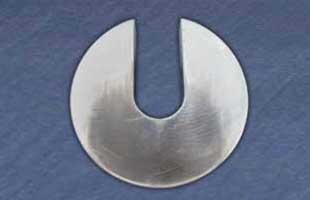

Slotted Surcharge Weight 10 lb

24-9246

8-1/2” o.d. (216 mm).

Spacer Disc 5-7/8" Diameter

24-9237

5-7/8” diam. x 2” h. (147.6 x 50.8 mm).

Swell Plate

24-9260

With adjustable stem.

Swell Stand

24-9262

For mounting Swell Dial Gauge in position on CBR mould collar.
