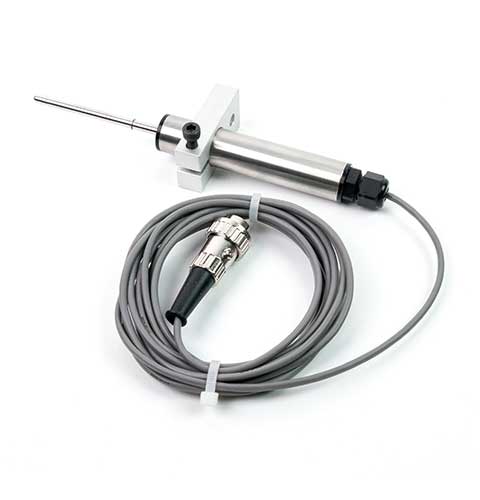

Vertical Displacement Transducer Assembly 15mm Travel with 5 Pin Din Plug Bracket for Shear Box

27-1689

Category:

Direct Shear and Vane Tests, Data Logging, Software and Electronic Instrumentation, Soils

Sub Category:

Instrumentation for Direct and Residual Shear Testing, Electronic Instrumentation, Data Acquisition

Product Group:

Displacement Measurement, Measurement of Horizontal and Vertical Movement, Displacement Transducers

0 to 10 mm range. For use with Direct/Residual Shear Machines. •Ideally suited for use with GDU for accurate displacement measurements

•Models available for use in consolidation, shear, CBR and triaxial test applications
•Supplied complete with mounting hardware for specified products

Displacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a 5-pin DIN type connector for direct connection to the GDU.

Description Vertical displacement transducer assembly 15 mm travel
Mounting Bracket Included as standard.



Specification

Construction Fully encapsulated electronics,
sealed in a stainless steel case
Excitation 12 V DC
Connector 5-pin DIN type
Mounting bracket Included as standard
Weight kg 0.45





Specifications

Construction Fully encapsulated electronics, sealed in a stainless steel case.
Excitation 10vDC.
Connector 5-Pin DIN type.
Mounting Bracket Included as standard.
Weight Net 1 lb. (0.45 kg).

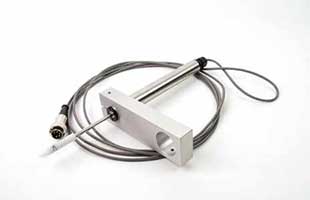

CBR Displacement Transducer

27-1706

test and Versa-Loader Series Load Frames.

Axial Strain Transducer Assembly 50mm Travel Fitted with 5 Pin Din Plug.

27-1617

0 to 50 mm range. For use with Triaxial Cells. •Ideally suited for use with GDU for accuratedisplacement measurements•Models available for use in consolidation, shear,CBR and triaxial test applications•Supplied complete with mounting hardware forspecified productsDisplacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accurate displacement measurements. They are supplied complete with a 5-pin DIN type connector for direct connection to the GDU.

Horizontal Displacement Transducer Assembly 15mm Travel 5 Pin Din Plug Mounting Pillar

27-1697

•Ideally suited for use with GDU for accuratedisplacement measurements•Models available for use in consolidation, shear, CBR and triaxial test applications•Supplied complete with mounting hardware for specified productsDisplacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a 5-pin DIN type connector for direct connection to the GDU.
