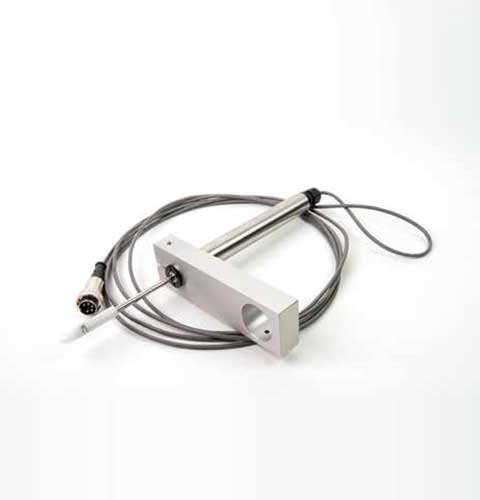

Axial Strain Transducer Assembly 50mm Travel Fitted with 5 Pin Din Plug.

27-1617

Category:

Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation, Soils

Sub Category:

Measurement instrumentation, Instrumentation for Triaxial testing, Electronic Instrumentation, Data Acquisition

Product Group:

Axial Displacement, Axial Displacement, Displacement Transducers

0 to 50 mm range. For use with Triaxial Cells.
•Ideally suited for use with GDU for accurate
displacement measurements
•Models available for use in consolidation, shear,
CBR and triaxial test applications
•Supplied complete with mounting hardware for
specified products

Displacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accurate displacement measurements. They are supplied complete with a 5-pin DIN type connector for direct connection to the GDU.

Description Axial strain transducer assembly 50mm travel
Mounting Bracket Included as standard.



Specification

Construction Fully encapsulated electronics,
sealed in a stainless steel case
Excitation 10V DC
Connector 5-pin DIN type
Mounting bracket Included as standard
Weight kg 0.45
