Compression Machines

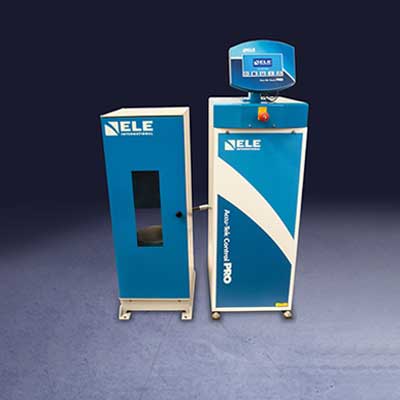

The Accu-Tek Touch Control PRO will deliver all the features and quality of the established ADR-Auto range, with its 20 year history, but with a new sleek design and additional capabilities. The console assembly consists of an ADR Touch Control Pro and power base which can be used with all existing concrete and cement frames.

The machines meet the requirements of ASTM C39 and AASHTO T22.

Model No. Desc
36-2692/01 Accu-Tek Touch Control PRO 350 Compression Machine 220-240 V 50 Hz
36-2692/02 Accu-Tek Touch Control PRO 350 Compression Machine 110 V 60 Hz
36-2692/06 Accu-Tek Touch Control PRO 350 Compression Machine 220-240 V 60 Hz
36-2690/01 Accu-Tek Touch Control PRO 250 Compression Machine 220-240 V 50 Hz
36-2690/02 Accu-Tek Touch Control PRO 250 Compression Machine 110V/60Hz
36-2690/06 Accu-Tek Touch Control PRO 250 Compression Machine 220-240 V 60 Hz

• New Touch Screen user interface to reduce set-up and training time.
• High accuracy and test repeatability.
• Selectable display in English, Metric and S.I. units.
• Pace Deviation Bar Graph.
• Automatic stress calculation and display.
• Safety guards provided as standard.
• Safety overtravel and overload protection.
• Adaptable, using a wide range of accessories.
• Rapid-change platen mounting system.
• Meets ASTM and AASHTO specifications.

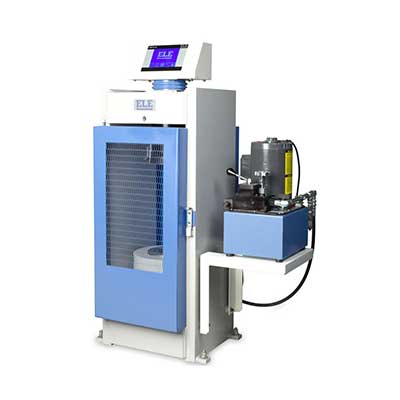

The ACCU-TEK TOUCH™ 500 Series compression tester meets the demands of extensive load capacity testing by combining microprocessor technology with rugged solid steel frame construction for testing high strength concrete. The space-saving single unit design consists of a heavy duty 500,000 lbf. (2,224 kN) capacity load frame, hydraulic pump and digital display system.

The large lower bearing block, combined with a bellows, eliminates hydraulic leaks by preventing dust and debris from entering the piston/cylinder seal area of the load frame. The 14” (355 mm) wide horizontal opening provides complete accessibility for loading specimens.

With the rapid-change platen system, the operator can quickly and easily mount a wide range of accessories to the upper crosshead for cylinder, cube, beam, and block specimen testing – from 2” (50 mm) cubes to 12” (305 mm) masonry blocks.

Model No. Desc
36-3095/01 Accu-Tek Touch 500 Series 220V/50Hz
36-3095/02 Accu-Tek Touch 500 Series 110V/60Hz
36-3095/06 Accu-Tek Touch 500 Series 220V/60Hz
37-5500 Platen Set for 6″ x 12″ Concrete Cylinders
37-5504 Platen Set 3″ x 6″ Concrete Cylinders
37-5510 Platen Set for 2″ Cubes
37-5518 Platen Set for Blocks up to 12″
37-5561 Pedestal for Testing 4″ x 8″ Cylinders
4699-1316 Ram Seal
9806-0016 Accutek Oil
37-5575 Frame Stand - 29 x 20 x 20 "

• New Touch Screen user interface to reduce set-up and training time.
• High accuracy and test repeatability.
• Automatic stress calculation and display.
• USB Data download to PC.
• RS-232C printer communication port.
• Solid steel side member construction.
• Front and rear safety guards provided as standard.
• Meets ASTM and AASHTO specifications.
• Adaptable, using a wide range of accessories.
• Rapid-change platen mounting system.

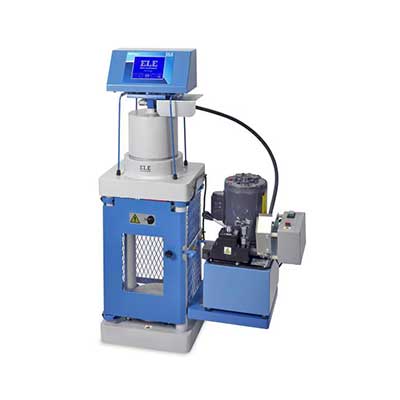

For testing a wide range of concrete specimens, the ACCU-TEK TOUCH™ 350 Series compression tester provides the ruggedness of solid steel frame construction with the microprocessor technology of the ELE ADR Touch touch screen controller system. The compact single unit design consists of a heavy duty 350,000 lbf. (1,555 kN) capacity load frame, hydraulic pump and digital readout system.

The 11.5” (292 mm) wide day light opening of the frame provides accessibility and convenience for placing specimens. Front and rear safety guards are supplied as standard. The rapid-change platen system facilitates mounting accessories to the upper crosshead. A wide range of accessories is available for cylinder, cube, beam, and block specimen testing – from 2” (50 mm) cubes to 10” (254 mm) blocks.

Model No. Desc
36-0735/01 Accu-Tek Touch 350 Series 220V/50Hz
36-0735/02 Accu-Tek Touch 350 Series 110V/60Hz
36-0735/06 Accu-Tek Touch 350 Series 220V/60Hz
37-5500 Platen Set for 6″ x 12″ Concrete Cylinders
37-5504 Platen Set 3″ x 6″ Concrete Cylinders
37-5510 Platen Set for 2″ Cubes
37-5561 Pedestal for Testing 4″ x 8″ Cylinders
4699-1315 Ram Seal
9806-0016 Accutek Oil
37-5575 Frame Stand - 29 x 20 x 20 "
36-0740/02 Accu-Tek Touch 350 Compression Machine 110V/60Hz
37-5520 Platen Set for Blocks up to 10″

• New Touch Screen user interface to reduce set-up and training time.
• High accuracy and test repeatability.
• Selectable display in English, Metric and S.I. units.
• Automatic stress calculation and display.
• USB Data download to PC.
• RS-232C printer communication port.
• Adjusts for capping compound or capping pad method, by removing the platen spacer.
• Includes platens for testing standard 6” x 12” (152 x 305 mm) cylinders.

The lightweight, portable ACCU-TEK™ 250 Digital Series compression tester offers economical, affordable quality testing on-site or in the lab. Each tester consists of a heavy duty load frame, hydraulic pump and digital readout system.

The compact single unit design offers a large surface area on the lower platen and a 9” (229 mm) wide horizontal opening between the steel uprights. All hydraulic pump operating controls are mounted on the front of the unit for easy access, and the built-in overload protection provides machine and operator safety. Supplied complete with standard platens, the ACCU-TEK 250 machines can test 6” x 12” (152 x 305 mm) cylinders, using either the capping compound or capping pad methods. Optional attachments make it easy to perform flexure, cube, block, and small cylinder testing.

Model No. Desc
37-6150/01 Interface Kit Accu-Tek 250 Auto 220-240 V 50/60 Hz
36-0695/02 Accu-Tek Touch 250 Compression Machine 110V/60Hz
36-0690/01 Accu-Tek Touch 250 Series Compression Machine 220V/50Hz
36-0690/02 Accu-Tek Touch 250 Series Compression Machine 110V/60Hz
36-0690/06 Accu-Tek Touch 250 Series Compression Machine 220V/60Hz
37-5570 Frame Stand - 20-1/2 x 17-1/2 x 15 ”
CT-992 Ram Seal Kit
37-5508 Platen Set for 3″ x 6″ Cylinders
37-5561 Pedestal for Testing 4″ x 8″ Cylinders
37-5522 Platen Set for 8″ x 8″ x 16″ blocks
37-5514 Platen Set for 2″ Cube
37-5516 Platen set for 6″ Cube
37-5528 Flexural Attachment - 79 kg
9806-0016 Accutek Oil
