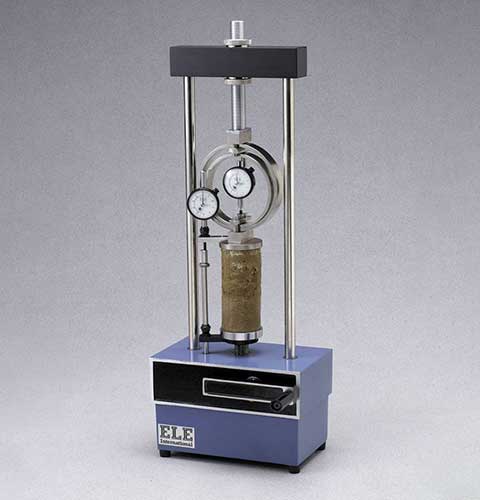

Unconfined Compression Tester, Hand-Operated

25-3604

Category:

Soils

Sub Category:

Unconfined Compression

Product Group:

Unconfined Compression Tester, Hand-Operated

1,500 lb. load capacity.
Description Unconfined Compression Tester, Hand-Operated 1,500 lb
Cross Head High-strength aluminum.
ASTM D2166 Yes
AASHTO T208 Yes

Specifications

Specimen HeightUp to 8” (203 mm).
Platens3” (76 mm) diam.; with concentric grooves for
centering specimen.
Proving RingPlated steel; complete with dial indicator and calibration charts in English and Metric units.
Strain IndicatorEnglish: 1.0” range x 0.001” graduations.
Metric: 25 mm range x 0.01 mm graduations.
Hand CrankTwo-piece; aluminum.
BaseOne-piece; cast aluminum.
CrossheadHigh-strength aluminum.
Dimensions10-5/8” w. x 6-3/8” d. x 26-1/4” h. (270 x
162 x 667 mm).
WeightNet 43 lbs. (19.5 kg).; Shpg. 58 lbs. (26.3 kg).

Unconfined Compression Test Accessory Set, English

25-3997

Includes: platens, 1.0” range dial indicator and 500 lb. capacity proving ring.

Unconfined Compression Test Accessory Set, Metric

25-3998

Includes: platens, 25 mm range dial indicator and 2.2 kN capacity proving ring.

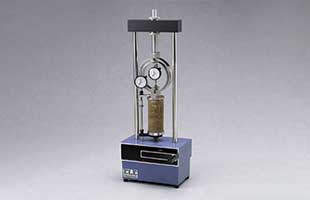

Unconfined Compression Tester, Hand-Operated

25-3602

500 lb. load capacity.
