100kN Flexural (Beams) Frame. Supplied Without Specimen Bearers and Fitting Kit.

37-6130

Category:

Flexural and Transverse Machines and Accessories, Concrete

Sub Category:

Compression Machines Accessories

Product Group:

Flexural Testing for Beams, Flexural Frame Attachments

  • Open sided for ease of specimen loading
  • Meets EN 12390-5 (BS 1881-118), EN 1521, EN 13161, EN 772-6, ASTM C78/C78M, ASTM C293/C293, AASHTO T97, AASHTO T177 standards
  • Optional ball seating assembly

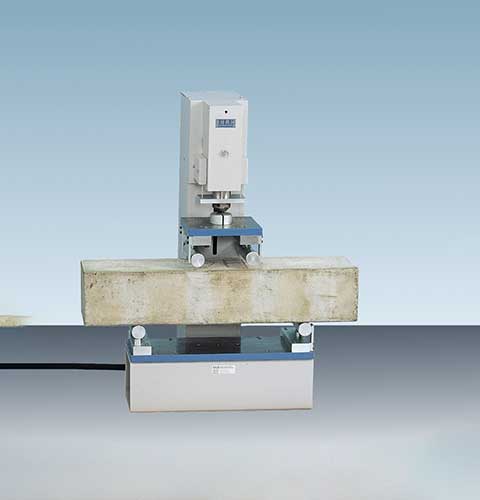

This rigidly constructed, open sided frame is suitable for testing 100 mm and 150 mm square-section beams. The frame supports a hydraulic ram and upper sub-platen assembly incorporating a spherical seating. The upper and lower sub-platens will accept various specimen loading bearers, which are supplied separately.

Please note, a flexural fitting kit is required, see the accessories tab for options.

Description 100kN Flexural (Beams) Frame
Weight, kg 159
Dimensions length x width x height, mm 380 x 505 x 845
Maximum Vertical Clearance mm 164 mm
Maximum Ram Travel mm 75 mm

100 kN Flexural Fitting Kit ADR Auto for 220 - 240 V AC, 60 Hz, 1 ph

37-6135/06

These flexural frames can be used with a wide range of ELE compression machines. Simply select one of two fitting kits designed to link the flexural frame to either the ADR-Auto range of compression machines or any other ADR compression machine.

100kN Flex Fitting Kit For Accu-Tek

1925PL0078

This kit is required when adding a second frame for Accu-Tek. However it is not required for the automatic Accu-Tek Touch Control Pro range.

100kN Flexural Fitting Kit (ADR) Used for Connecting Flexural Frames to ADR Compression Machines.

37-6138

These flexural frames can be used with a wide range of ELE compression machines. Simply select one of two fitting kits designed to link the flexural frame to either the ADR-Auto range of compression machines or any other ADR compression machine.

ASTM C78 Specimen Bearer Assembly Case-Hardened 38mm Dia X 160mm Length.

37-6132

Comprising 2 self-aligning upper bearers, 1 self-aligning and 1 fixed lower bearer; case-hardened, 38 mm diameter x 160 mm long and suitable for 3- or 4-point flexural testing of beams.

BS 1881 Specimen Bearer Assembly 38mm Dia X 160mm Length.

37-6131

Comprising 2 self-aligning upper bearers, 1 self-aligning and 1 fixed lower bearer. Roller bearers are 38 mm diameter x 160 mm long. Suitable for 3- or 4-point flexural testing of beams.

Change over valve assembly kit for 230V, 50/60Hz

37-0011/01

Fitting kit for the addition of a second compression or flexural load frame to the ADR automatic range of compression machines.

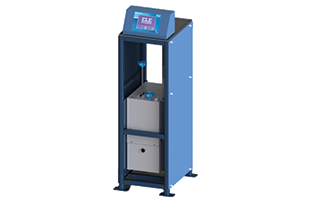

ADR Touch Manual Power Pack Including Fitting Kit 220-240V 50/60Hz 1Ph

36-6165/01

For use with ELE Compression and Flexural Frames; 37-6130: 100kN Flexural (beams) Frame 37-6140: 100kN Flexural and Transverse (flags) Frame.  39-6120: 250/25 kN Compression Frame.
