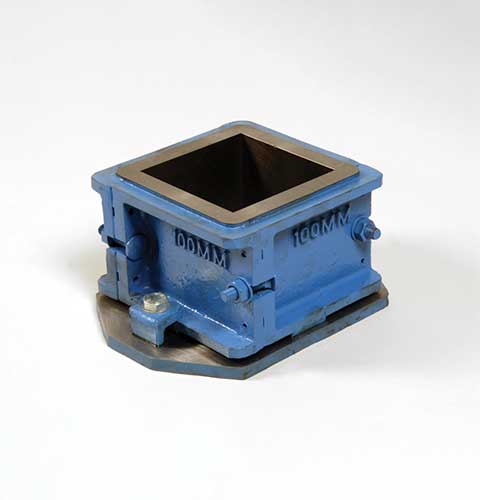

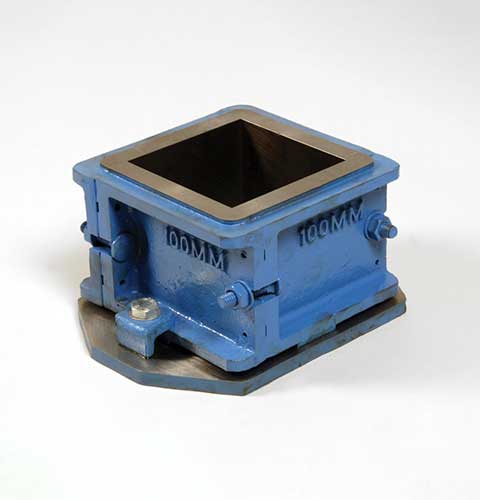

100mm Cube Mould 4-Part Clamp Type. Cast Iron Construction. BS EN Compliant.

« return

100mm Cube Mould 4-Part Clamp Type. Cast Iron Construction. BS EN Compliant.

34-4520

Category:

Fresh and Hardened Concrete Testing, Concrete

Sub Category:

Moulding Equipment, Fresh and Hardened Concrete Testing, Moulding Equipment

Product Group:

Cube Moulds, Cube Moulds

4-part with clamp attached base plate.

Cube mould type 4 part
Specimen Size 100 x 100 mm
Internal Dimensions dia x h, ” 100 x 100 x 100
EN 12390-1 Yes
EN 12390-2 Yes



Specifications

Construction Bolted sides and clamped base plate
Finish Painted
Weight 20 lb (9.1 kg)



Compacting Bar 25mm Sq X 380mm

34-2910

Steel, 380 x 25 mm (length x square) tamping area, EN/BS.

Wire Brush

81-0705

Vibrating Table 600 X 400mm Table Top. 220-240V 50Hz 1Ph. Supplied with clamping assembly

34-6250/01

The ELE vibrating table is a compact unit providing controlled vibro-compaction in the laboratory, using cube or cylinder moulding equipment. Vibrating table mounted on a steel stand, supplied with clamp assembly.  Complies to EN 12390-2, EN 12350-6 (BS 1881-107), EN 12350-7 (BS 1881-106)
