Vibrating Table 600 X 400mm Table Top. 220-240V 50Hz 1Ph. Supplied with clamping assembly

« return

Vibrating Table 600 X 400mm Table Top. 220-240V 50Hz 1Ph. Supplied with clamping assembly

34-6250/01

Category:

Fresh and Hardened Concrete Testing

Sub Category:

Compaction

Product Group:

Vibrating Table

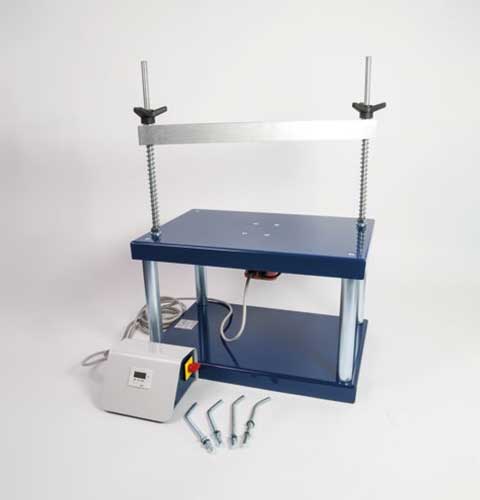

The ELE vibrating table is a compact unit providing controlled vibro-compaction in the laboratory, using cube or cylinder moulding equipment.

Vibrating table mounted on a steel stand, supplied with clamp assembly.

Complies to EN 12390-2, EN 12350-6 (BS 1881-107), EN 12350-7 (BS 1881-106)

**Not available for sale in the USA**

3000 cycles per minute. For 220 – 240 V AC, 50 Hz, 1 ph.

Voltage Supply 220 - 240 V AC, 50 Hz, 1 ph
EN 12390-2 Yes
EN 12350-6 Yes
EN 12350-7 Yes



Specification

Dimensions (table top) 600 x 400 mm
Maximum no. Cube moulds 2 x 150 mm²
Clamp Assembly Single
Weight 60 kg



Compacting Bar 25mm Sq X 380mm

34-2910

Steel, 380 x 25 mm (length x square) tamping area, EN/BS.

Wire Brush

81-0705

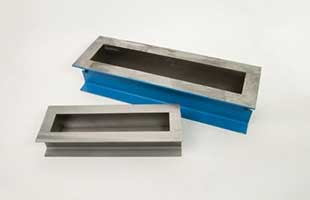

100 X 100 X 500mm Beam Mould.

34-5003

Complete with base plate Weight 17 kg

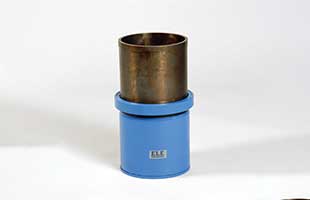

100mm Dia Cylinder Mould 200mm Long.
