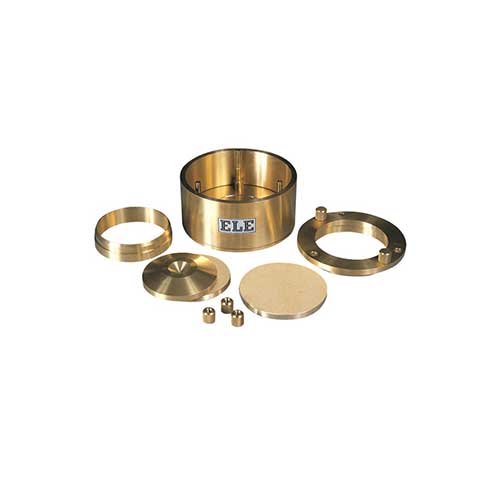

2.416" Fixed Ring Consolidometer

Product code : 25-0480

Category : Soils Sub Category : Manual Consolidation

Product Group : Fixed Ring Consolidation, Pneumatic Consolidation Apparatus, Table Top Consolidation Apparatus

Request Quote Download PDF

Specification

Application: California
Specimen Diameter: 2.41 6â
Specimen Area: 4.585inÂ²
Beam Ratio: 10:01
Load: 1.45 kg
Stress: 1000lbf/ftÂ²
Typical Maximum Stress: 11 0,720lbf/ftÂ²
Stress for 1 kg: 692lbf/ftÂ²

Accessories and Spares/Consumables

Type	Product Name	Product Code	Standard Code
Spare/Consumable	Upper and Lower Porous Stones, 2.416"	25-0480/13	NA	Visit Page

With cutting (specimen) ring.
