2.5" Floating Ring Consolidometer

« return

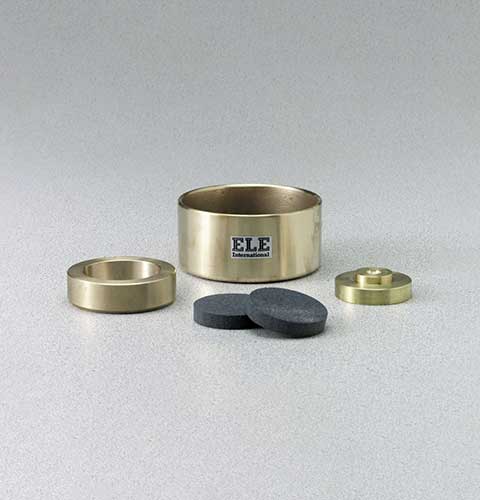

2.5" Floating Ring Consolidometer

25-0530

Category:

Soils

Sub Category:

Manual Consolidation

Product Group:

Floating Ring Consolidometer, Pneumatic Consolidation Apparatus, Table Top Consolidation Apparatus

Porous Stones dimensions diam x thick, ” 2-15/32 x 1/2
Description 2.5″ Floating Ring Consolidometer

Specifications

Specimen Size2.5” diam. x 1” h. (63.5 x 25 .4 mm).
BaseOne-piece machined bronze; 5” diam. x 3” h.
(12 7 x 76.2 mm).
Specimen RingMachined brass.
Porous Stones2-15 /32 ” diam. x 1/2” thick (62.7 x 12 .7 mm).
WeightNet 13 lbs. (5.9 kg).

Porous Stone 2-15/32" dia.

25-0530/10

2-15/32” diam. x 1/2” thick (62.7 x 12.7 mm).

Specimen Ring 2.5"

25-0533

For 2.5” (63 mm) diam.samples.
