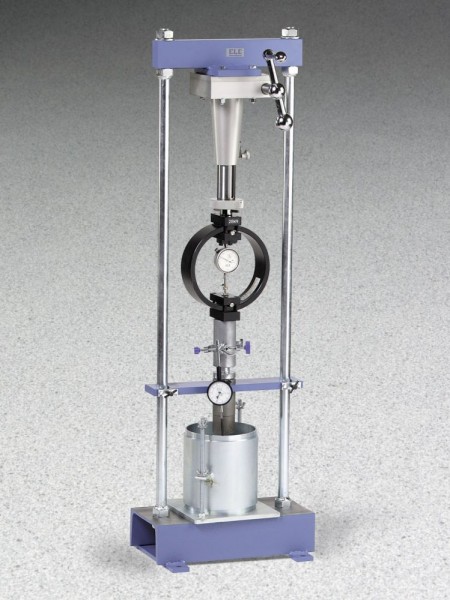

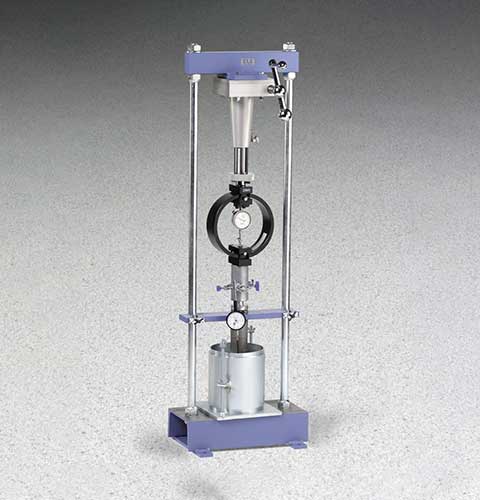

CBR Loading Press, Hand-Operated

« return

CBR Loading Press, Hand-Operated

24-9345

Category:

Soils

Sub Category:

Compaction and CBR, CBR

Product Group:

CBR Loading Press, Hand-Operated

Log in

You must log in to your ELE account to view prices and place your order.

ASTM 1883 Yes
AASHTO T193 Yes
Description CBR Loading Press, Hand-Operated



Specifications

Jack Mechanical; with quick release device for rapid adjustments.
Frame Heavy-duty steel construction with two column uprights.
Dimensions 14 .5” w. x 10.25 ” d. x 46” h. (368 x 260 x 1,168 mm).
Weight Net 145 lbs, (65.7 kg).

Proving Ring, penetration dial indicator and mold not included, order separately.

Dial Indicator - 1.0" Range

88-4100

1.0” x 0.001” divisions.
