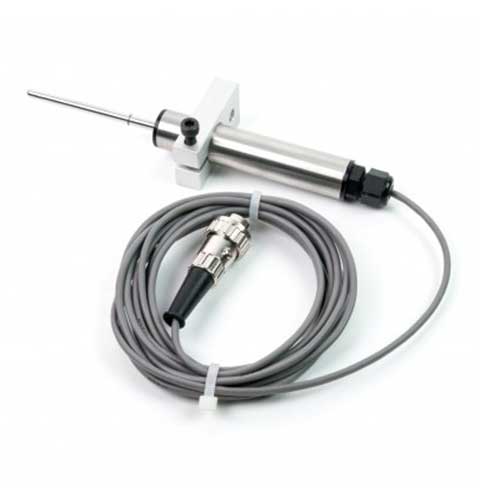

Consolidation Transducer Assembly 15mm Travel Fitted with 5 Pin Din Plug.

27-1649

Category:

Consolidation Apparatus, Data Logging, Software and Electronic Instrumentation, Soils

Sub Category:

One-Dimensional Consolidation, Instrumentation for Consolidation Testing, Electronic Instrumentation, Data Acquisition

Product Group:

Displacement Measurement, Displacement Transducers, Vertical settlement measurement

Fitted with 5 pin DIN plug.

Supplied with Calibration Certificate.

Description Displacement tranducer
Mounting Bracket Included as standard.



Specification

Construction Fully encapsulated electronics,
sealed in a stainless steel case
Excitation 11 V DC
Connector 5-pin DIN type
Mounting bracket Included as standard
Weight kg 0.45
