35-2165
Category:
Concrete
Sub Category:
Fresh and Hardened Concrete Testing, Non-Destructive Testing of Hardened Concrete
Product Group:
Corrosion Mapping System

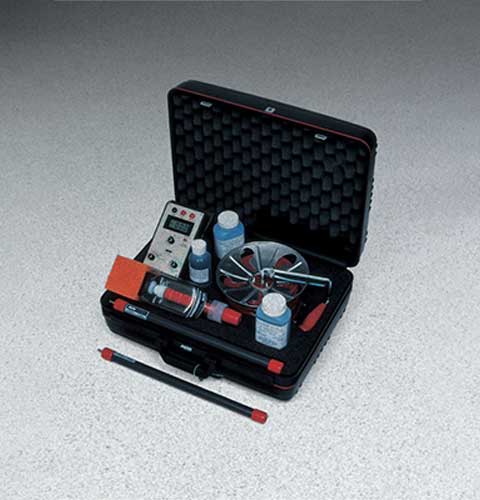

The 35-2165 Corrosion Mapping System consists of a voltmeter, a portable surfactant reservoir with electrode, 250 ft. (76 m) test wire with a hand reel, an adaptor plate, two 15" (381 mm) long electrode extensions, copper sulphate crystals, anti-freeze and concentrated surfactant solutions. Ideally suited for use on bridge decks, concrete piers and docks, highway slabs and parking garages, the Corrosion Mapping System is packaged in a convenient carrying case for easy transport.
| Memory Capacity | 15 ,866 half-cell readings; 12 8 max. scans. |
| ASTM C876 | Yes |
| Description | Corrosion Mapping System |
| Half-Cell Type | Drive unit, electronic measuring device, templates, measuring caps, gauge plates and carrying case. |
| Measurement Spacing | Net 18 lbs. (8.5 kg). |
| Memory Capacity | 15 ,866 half-cell readings; 12 8 max. scans. |
| Power Supply | Battery powered. Charger 90/25 0vAC, 50/60Hz, 1ø, AC (auto selectable). |
| Operating Temperature | 0 to 40°C. |
| Dimensions | 9.5” x 5.3” x 11 ” (24 0 x 135 x 280 mm). |
| Weight | Net 14 lbs. (6.4 kg). |
