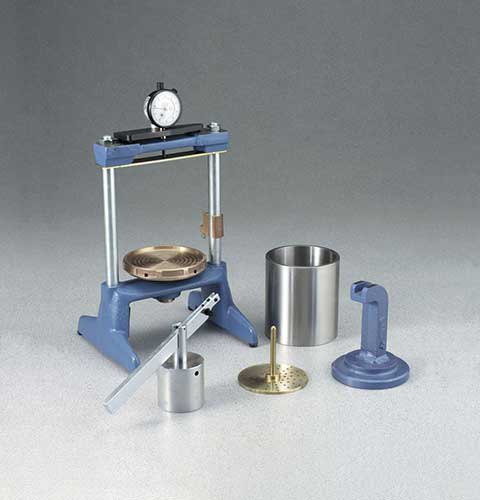

Specification

  • Frame Stand: Includes adjustable turntable, height gauge and head
  • Height Gauge: Scribed; sliding.
  • Head: Adjustable, drilled; includes deflection barand dial indicator adjustment screw.
  • Plate: Perforated brass; circular, withperpendicular stem.
  • Dial Indicator Holder: Triangular, drilled; with dial indicatorsupport and 3 feet.
  • Dial Indicator: 0.2” (7.6 mm) range x 0.0001” (0.002 mm)divisions.
  • Mold: 0.2” (7.6 mm) range x 0.0001” (0.002 mm)divisions.
  • Calibrating Device: Lever-type.
  • Overall Dimensions: 12 ” w. x 12 ” d. x 16” h. (305 x 305 x 406mm).
  • Weight: Net 35 lbs. (15 .9 kg).

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Accessories R-Value Rough Hveem Test Mold 45-7505/10 NA Visit Page
Spare/Consumable Dial Indicator and Holder Assembly 45-7580/12 NA Visit Page
Spare/Consumable Expansion Pressure Frame 45-7580/10 NA Visit Page
Spare/Consumable Lever Type Calibration Device 45-7580/14 NA Visit Page
