Large Curing Tank C/W with Circulating Pump Heater/Thermostat Unit and Lower Rack

« return

Large Curing Tank C/W with Circulating Pump Heater/Thermostat Unit and Lower Rack

34-6575/01

Category:

Compaction & CBR Test Equipment, Fresh and Hardened Concrete Testing

Sub Category:

CBR Moulds and Accessories, Curing of Specimens

Product Group:

Expansion (swell) Test Equipment, Large Curing Tank

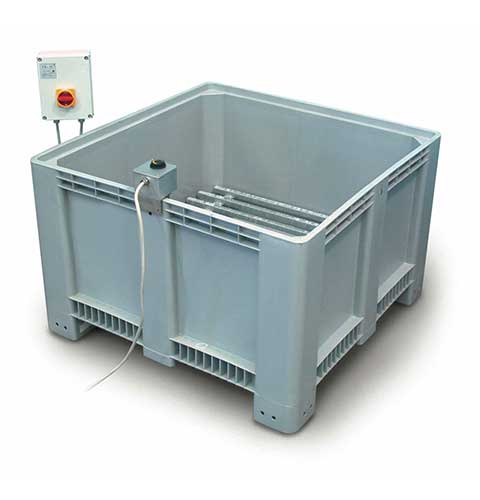

This large curing tank is supplied complete with a submersible pump, immersion heater/thermostat unit and separate control panel. The tank includes a lower rack as standard and is designed to maintain the temperature at 20°C ± 2°C, providing that the ambient temperature does not fall below 15°C or rise above 20°C. 3000 cycles per minute.

**Not available for sale in the USA**

Supplied as specified. For 220 – 240 V AC, 50 – 60 Hz, 1 ph.

Description Large Curing/Soaking Tank
EN 12390-2 Yes
ASTM C31 Yes
AASHTO T23 Yes



Specification

Internal Dimensions 1040 x 1040 x 605 mm (l x w x h)
Capacity 650 litres
Rated Power 2000 watt
Weight 60 kg



Maximum and Minimum Thermometer

82-5310

Non hazardous. Range -40 - +50°C

Jolting Table 220 - 240 V AC 60 Hz

39-1150/06

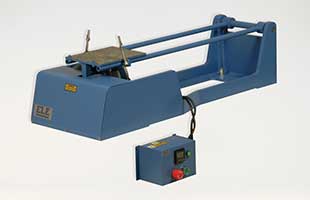

This machine consists of a mould table seated on a rotating cam driven at 60 revolutions per minute. The apparatus is supplied with a remote mains switch box, incorporating a push button start/stop control and automatic stop control at end of test. Supplied without moulds.
