Le Chatelier Mould

38-3005

Category:

Soundness

Sub Category:

N/A

Product Group:

General Expansion of Dry Hydrated Lime by the Le Chatelier Method, Soundness of Cement Paste by the Le Chatelier Method

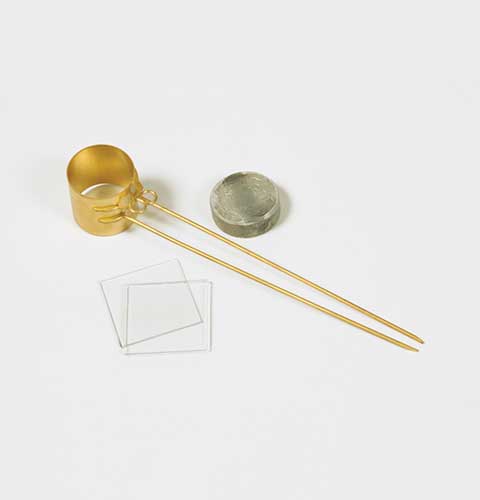

Comprising a split cylinder fitted with two indicator stems. The mould is supplied complete with two glass plates and a weight 100 g ±10 g. Three moulds required for each test.

**Not available for sale in the USA**

Description Le Chatelier Mould
Weight, kg 0.9
BS 6463 Yes
EN 196-3 Yes
EN 459-2 Yes

Extensibility of Mould Apparatus BS

38-3200

Conforms to BS 6463. The unit comprises a metal sleeve with a hook and set screw to fit over one of the mould pointers, and a clamp to fit onto the other pointer of the mould. Supplied complete with one weight 100 g ±1 g.

Extensibility of Mould Apparatus EN

38-3205

Conforms to EN196-3, 459-2. The unit comprises a metal sleeve with a hook and set screw to fit over one of the mould pointers, and a clamp to fit onto the other pointer of the mould. Supplied complete with one weight 300 g ±1 g.

Le Chatelier Water Bath

38-3420/01

Constructed with stainless steel inside chamber and exterior case in painted steel sheet, it can hold up to 12 Le Chatelier moulds (to be ordered separately) in the removable rack, supplied with the bath. The bath reaches the boiling point in approximately 30 minutes. Now an original device keeps the…

Tamping Rod

38-3300

17 mm end diameter.
