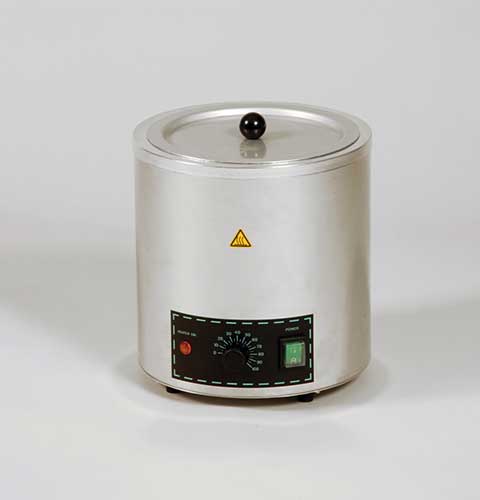

Melting Pot 4 Litre Capacity. 50 to 300 Deg. C. Temperature Range.

« return

Melting Pot 4 Litre Capacity. 50 to 300 Deg. C. Temperature Range.

34-6122/01

Category:

Fresh and Hardened Concrete Testing

Sub Category:

Capping of Cylinders

Product Group:

Melting Pot

This unit is suitable for melting wax and capping compound and comprises a metal container in a welllagged steel jacket. A thermostatic control and stand-by heat switch are fitted. Supplied complete with lift-off cover.

Complies to EN 12390-3, ASTM C617/C617M, ASTM C31/C31M, ASTM C42/C42M, ASTM C39/C39M, ASTM C192/C192M, AASHTO T22, AASHTO T23, AASHTO T24, AASHTO T126, AASHTO T231.

**Not available for sale in the USA**

for 220 – 240 V AC, 50 - 60 Hz, 1 ph.

Voltage Supply 220 - 240 V AC, 50 - 60 Hz, 1 ph
BS 1377-1 Yes



Internal Dimensions (diameter x depth 140 x 150 mm
External Dimensions (diameter x depth) 250 x 165 mm
Capacity 4 litres
Rated Power 300 watt
Temperature range 50 to 300ºC
Weight 7 kg







Flake Capping Compound to ASTM C617 22Kg

34-6100

Supplied in 22 kg box.
