Portable Core Drill, 17 hp, gasoline engine

« return

Portable Core Drill, 17 hp, gasoline engine

47-5182

Category:

Asphalt

Sub Category:

Pavement, Core Drilling

Product Group:

Core Drill

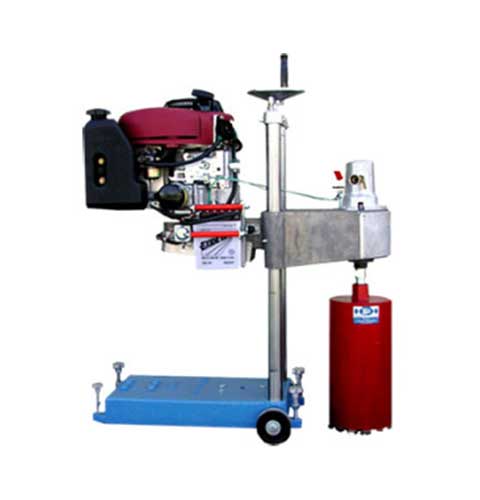

Shown with drill bit; drill bits not included, order separately.

Column Travel 24" (610 mm)
Description Portable Core Drill, 17 hp, gasoline engine



Specifications

Engine Gasoline, 17 hp, with electric starter
Speed Variable, 300 to 1,500 bit rpm
Drilling Position Vertical drilling only
Bit Capacity Up to 16" (406 mm) diameter
Column Travel 24" (610 mm)
Weight Net 315 lbs. (143 kg).



Closed End Drill Bit, 3-1/2" Diameter

47-5697

For taking core with diameter of 3-1/4" (82.5 mm)

Closed End Drill Bit, 3" Diameter

47-5695

For taking core with diameter of 2-3/4" (69.8 mm)

Closed End Drill Bit, 4-1/4" Diameter

47-5701

For taking core with diameter of 4" (101.6 mm)

Closed End Drill Bit, 4" Diameter

47-5699

For taking core with diameter of 3-3/4" (95.2 mm)

Closed End Drill Bit, 6-1/4" Diameter

47-5707

For taking core with diameter of 6" (152.4 mm)

Open End Drill Bit, 3-1/2" Diameter

47-5696

For taking core with diameter of 3-1/4" (82.5 mm). Requires use of 3-1/2" Expanding Adapter.

Open End Drill Bit, 3" Diameter

47-5694

For taking core with diameter of 2-3/4" (69.8 mm). Requires use of 3" Expanding Adapter.

Open End Drill Bit, 4-1/4" Diameter

47-5700

For taking core with diameter of 4" (101.6 mm). Requires use of 4-1/4" Expanding Adapter.

Open End Drill Bit, 4" Diameter

47-5698

For taking core with diameter of 3-3/4" (95.2 mm). Requires use of 4" Expanding Adapter.

Open End Drill Bit, 6-1/4" Diameter

47-5706

For taking core with diameter of 6" (152.4 mm). Requires use of 6-1/4" Expanding Adapter.
