Pressure Test 1700 Oil/Water Constant Pressure System 0 to 1700kPa 220-240V 50/60Hz 1Ph.

« return

Pressure Test 1700 Oil/Water Constant Pressure System 0 to 1700kPa 220-240V 50/60Hz 1Ph.

26-1800/01

Category:

Soil Strength (Triaxial)

Sub Category:

Pressure Systems

Product Group:

Oil/Water Constant Pressure System, Air/Water Pressure Systems - up to 1700 kPa

• 0 to 1700 kPa (250 lbf/in²) fully variable
• Continuous constant pressure control
• One litre capacity

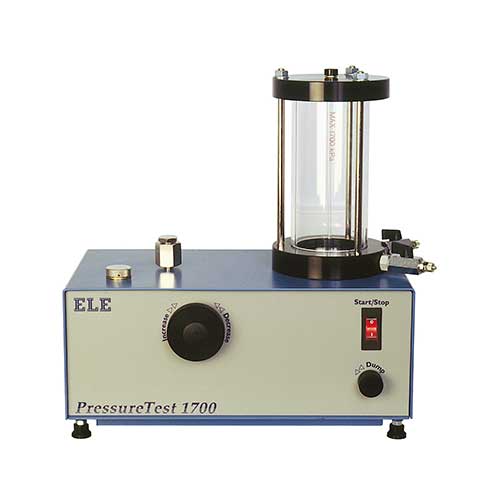

The ELE oil/water constant pressure system, PressureTest 1700, is extremely versatile and can be used in conjunction with a wide range of test equipment. The unit provides continuous variable pressure up to 1700 kPa. Pressure is increased or decreased simply by turning a control wheel.

The apparatus is supplied without a gauge for those customers who have suitable pressure monitoring equipment. A digital pressure gauge is offered as an accessory. The machine features a clear hydraulic/water interface reservoir and up to one litre capacity of water is available under pressure.

Dimensions (without gauge) 240 x 400 x 500 mm (l x w x h).

Description Pressure Test 1700 Oil/Water Constant Pressure System
Power Supply 220 - 240 V AC, 50 - 60 Hz, 1 ph

Digital Pressure Gauge 1700 kPa for Use with 26-1800 Series Oil/Water Constant Pressure System.

26-1820

•Capacity: 1700 kPa •Units: pressure can be indicated in bar mbar / hPa psi kPa mPa•Accuracy: better than 1% of indicated pressure•Measurement interval: twice per second•Pressure connection: 1/4"" bsp•Power supply: 3 volt battery cr 2430 type• Battery life: 1400 hours continuous operation•Capacity: 1700 kPa •Units: pressure can be indicated in…

Oil 5 Litres T46

26-1805

5 litres
