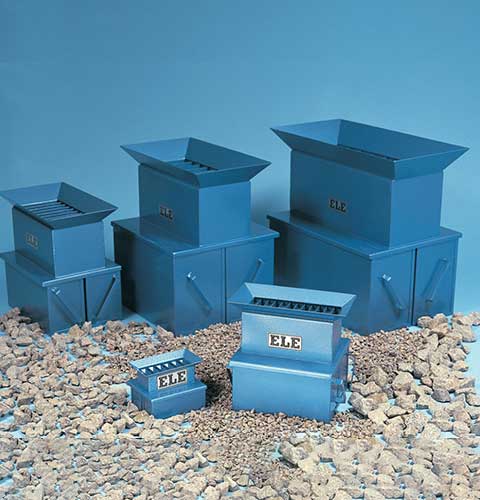

Riffle Box 64mm Slot Width Complete with Three Containers.

23-3350

Category:

In-situ Sampling and Preparation

Sub Category:

Hand Boring and Sampling

Product Group:

Riffle Boxes (Sample Dividers)

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 42.5 mm. EN recommended maximum particle size of 32 mm. Includes 8 slots each with a 64 mm slot width and an overall approximate capacity of 18 litres.

Log in

You must log in to your ELE account to view prices and place your order.

Recommended max particle size - mm (BS) 42.5
Recommended max particle size - mm (EN) 32
Slot width, mm 64
No. of slots 8
BS 1377 Yes
BS 1924 Yes
BS 812 Yes
EN 932-1 Yes

Specification

Recommended max particle size BS42.5
Recommended max particle size EN32
Slot width mm64
No. of slots8
Approx. capactiy kg18
Weight kg27

Riffle Box 13mm Slot Width Complete with Three Containers.

23-3050

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 8.5 mm. EN recommended maximum particle size of 6.5 mm. Includes 12 slots each with a 13 mm slot width and an overall approximate capacity of 2 litres.

Riffle Box 15mm Slot Width Complete with Three Containers.

23-3070

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 10 mm. EN recommended maximum particle size of 7.5 mm. Includes 12 slots each with a 15 mm slot width and an overall approximate capacity of 2 litres.

Riffle Box 19mm Slot Width Complete with Three Containers.

23-3100

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 12.5 mm. EN recommended maximum particle size of 9.5 mm. Includes 10 slots each with a 19 mm slot width and an overall approximate capacity of 4 litres.

Riffle Box 25mm Slot Width Complete with Three Containers.

23-3150

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 16.5 mm. EN recommended maximum particle size of 12.5 mm. Includes 10 slots each with a 25 mm slot width and an overall approximate capacity of 4 litres.

Riffle Box 30mm Slot Width Complete with Three Containers.

23-3170

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 20 mm. EN recommended maximum particle size of 15 mm. Includes 10 slots each with a 30 mm slot width and an overall approximate capacity of 4 litres.

Riffle Box 38mm Slot Width Complete with Three Containers.

23-3200

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 25 mm. EN recommended maximum particle size of 19 mm. Includes 8 slots each with a 38 mm slot width and an overall approximate capacity of 11 litres.

Riffle Box 50mm Slot Width Complete with Three Containers.

23-3300

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 33 mm. EN recommended maximum particle size of 25 mm. Includes 8 slots each with a 50 mm slot width and an overall approximate capacity of 14 litres.

Riffle Box 7mm Slot Width Complete with Three Containers.

23-3000

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 4.5 mm. EN recommended maximum particle size of 3.5 mm. Includes 12 slots each with a 7 mm slot width and an overall approximate capacity of 0.3 litres.
