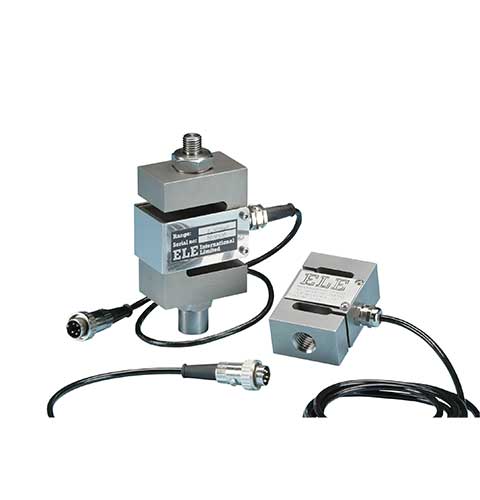

S-Type Load Cell 10 kN.for Triaxial Tests. Fitted with 5 Pin Din Plug.

27-1553

Category:

Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation

Sub Category:

Measurement instrumentation, Instrumentation for Triaxial testing

Product Group:

Load Measurement, Load Measurement

•Repeatability better than ± 0.02% of rated output
•Non-Linearity better than ± 0.03% of rated output
•Supplied complete with 5-pin DIN type connector for connection to GDU

Ideally suited for a wide range of applications, ELE S-type load cells provide high accuracy and minimum deformation. Various models are available, with the necessary adaptors, for use with ELE Triaxial Load Frames, Multiplex 50/Marshall Test 50/CBR Test 50 and Direct Shear machine.

Load device type S-Type
Force Capacity, kN 10
Description S-Type load cell
Environmental Protection IP65

S-Type Load Cell 5 kN.for Triaxial Tests. Fitted with 5 Pin Din Plug.

27-1551

•Repeatability better than ± 0.02% of rated output•Non-Linearity better than ± 0.03% of rated output•Supplied complete with 5-pin DIN type connector for connection to GDUIdeally suited for a wide range of applications, ELE S-type load cells provide high accuracy and minimum deformation. Various models are available, with the necessary adaptors, for use with ELE Triaxial Load Frames, Multiplex 50/Marshall Test 50/CBR Test 50 and Direct Shear machine.
