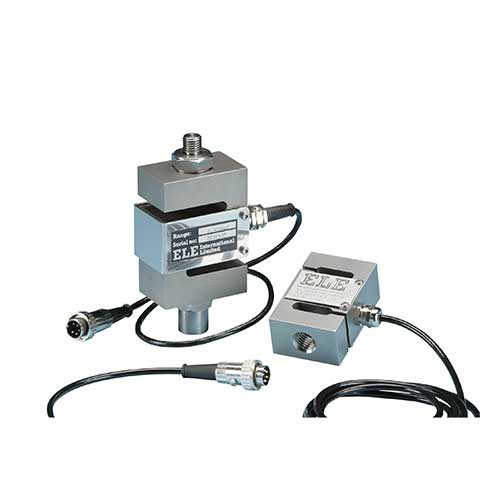

S-Type Load Cell 5 kN.for Triaxial Tests. Fitted with 5 Pin Din Plug.

27-1551

Category:

Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation

Sub Category:

Measurement instrumentation, Instrumentation for Triaxial testing

Product Group:

Load Measurement, Load Measurement

•Repeatability better than ± 0.02% of rated output
•Non-Linearity better than ± 0.03% of rated output
•Supplied complete with 5-pin DIN type connector for connection to GDU

Ideally suited for a wide range of applications, ELE S-type load cells provide high accuracy and minimum deformation. Various models are available, with the necessary adaptors, for use with ELE Triaxial Load Frames, Multiplex 50/Marshall Test 50/CBR Test 50 and Direct Shear machine.

Load device type S-Type
Force Capacity, kN 5
Description S-Type load cell
Environmental Protection IP65

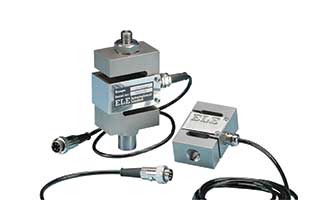

50kN S-type Load Cell

27-1559

Maximum working capacity of 50 kN and excitation 10 V AC/DC with an output of 2.7 mV/V nominal. Aluminium alloy and Stainless Steel construction with IP65 environmental protection. Fitted with 5-pin DIN plug.

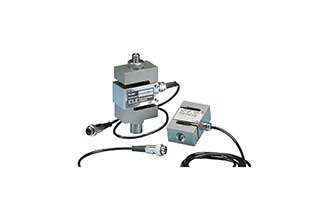

S-Type Load Cell 10 kN.for Triaxial Tests. Fitted with 5 Pin Din Plug.
