Soil water sampler, depth 90 cm x 48 mm diameter

« return

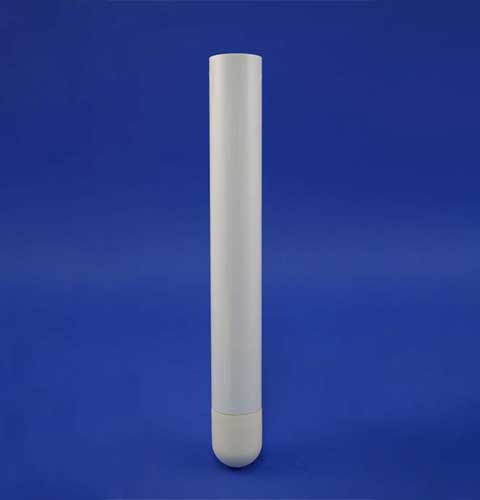

Soil water sampler, depth 90 cm x 48 mm diameter

450-064

Category:

Soils

Sub Category:

Soil Sampling

Product Group:

Soil water samplers

  • Easy installation.
  • Requires no maintenance.
  • Ideal for nitrate monitoring.
  • 3 sampler sizes available.

Samples water from saturated and unsaturated soils.

This range of soil water samplers can be installed either above or below the water table. They are designed to collect soil water, which can then be extracted from the device and taken to the laboratory for analysis. The sampler is installed into a hole made with a screw or bucket auger.

A negative pressure of up to 85 centibar is applied to the tube using a hand pump. Water enters the sampler through the porous ceramic cup at the end of the sampler. Water samples can be collected as required utilising the universal extraction kit (450-066). The rate of water accumulation depends on the soil type and moisture content.

Nitrate leaching from fertiliser applications can be monitored simply and effectively using these instruments.

Please note the 450-066 Universal extraction kit is required for the operation of soil water samplers.

Each soil water sampler has; plastic tube, ceramic cup, stopper assembly, neoprene tubing and pinch clamp.

Description Soil Water Sampler - 90 cm x 48 mm
Sampler length  90 cm
Outer diameter  48 mm
Weight  0.48 kg
Dimensions  914 x 127 x 127 mm

Universal Extraction Kit

450-066

This kit is designed for use with Soil Water Samplers 450-060, 450-062, 460-064 by withdrawing collected samples from near-surface or column soil water samplers. The Extraction Kit comes with a 50 ml syringe, 3.16 inches outside diameter tubing, 3.32 inches outside diameter nylon tubing and luer connectors, a vacuum dial…

Nylon Tube 7.5 Metres

450-060/10

Spares for 450-066

Stopper Assembly

450-060/12

Including neoprene tubing and pinch clamp.

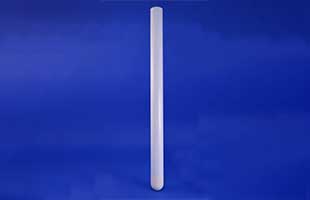

Soil water sampler, depth 30 cm, diameter 48 mm

450-060

Easy installation. Requires no maintenance. Ideal for nitrate monitoring. 3 sampler sizes available.  Samples water from saturated and unsaturated soils. This range of soil water samplers can be installed either above or below the water table. They are designed to collect soil water, which can then be extracted from the device and…

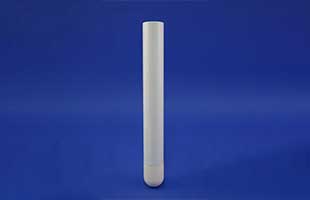

Soil water sampler, depth 60 cm x 48 mm diameter

450-062

Easy installation. Requires no maintenance. Ideal for nitrate monitoring. 3 sampler sizes available.  Samples water from saturated and unsaturated soils. This range of soil water samplers can be installed either above or below the water table. They are designed to collect soil water, which then can be extracted from the device and…
