Specification

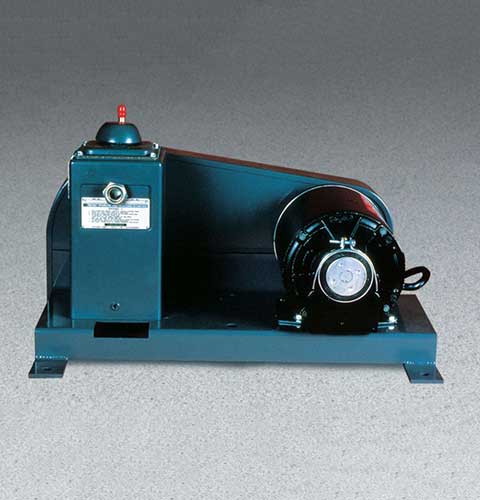

  • Pump: Two series-connected eccentric pumps; base-mounted.
  • Delivery: 0.3 microns of Hg; ultimate pressure inleakproof system; 3 gal/min. (10 liter/min) free air displacement at 350 rpm.
  • Motor: 1/3 h.p.;V-belt drive; base-mounted.
  • Intake Port: 13 /32 ” (10 mm) o.d.; takes 1/4” (6 mm) bore tubing.
  • Overall Dimensions: 18-1/2” w. x 10” d. x 10-3/4” h. (469 x 254 x 273 mm).
  • Weight: Net 46 lbs. (21 kg).

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Accessories Filtering Kit 45-9301 NA Visit Page
Accessories High Vacuum Grease 88-3115 NA Visit Page
115vAC, 60 Hz, 1ø.
Request Quote
