Submersible Load Transducer Assembly 10kN Capacity In Compression.

27-1575

Category:

Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation

Sub Category:

Measurement instrumentation, Instrumentation for Triaxial testing

Product Group:

Load Measurement, Load Measurement

•Eliminates effects of piston friction on readings
•Unaffected by cell confining pressures
•Easily installed in triaxial cell
•Supplied complete with calibration certificate and 5-pin DIN type connector for use with GDU

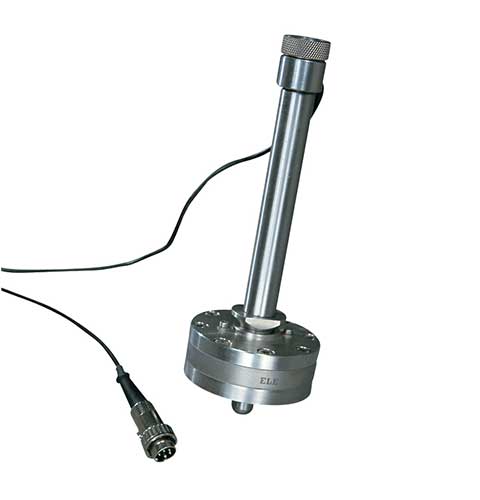

Submersible Load Transducers are used to measure accurately the axial loads applied to triaxial test specimens. Consisting of a load cell and piston assembly these units replace the standard triaxial cell loading piston. A major advantage is that these transducers measure loads directly on top of the specimen. All transducers are supplied complete with a 5-pin DIN type connector and calibration certificate.

Load device type Submersible
Force Capacity, kN 10
Description Submersible load transducer
Compensated Temperature Range 0 - 50



Specification

Dimensions 76 x 50 mm (dia x h) excluding piston and adaptor
Overload capacity 150%
Output 27 mv full range
Excitation 11 V DC (15 V DC max)
Non-linearity 0.1% maximum
Hysteresis Deflection 0.1% maximum 0.05 mm at full load
Side force 50% full scale maximum without effect
Connector 5-pin DIN plug
Compensated temperature range 1 to 50°C
Weight g 850

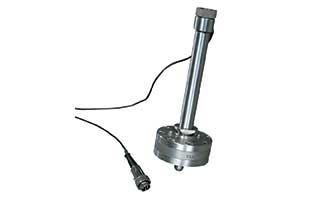

Submersible Load Transducer Assembly 5kN Capacity In Compression.

27-1573

•Eliminates effects of piston friction on readings•Unaffected by cell confining pressures•Easily installed in triaxial cell•Supplied complete with calibration certificate and 5-pin DIN type connector for use with GDUSubmersible Load Transducers are used to measure accurately the axial loads applied to triaxial test specimens. Consisting of a load cell and piston…
