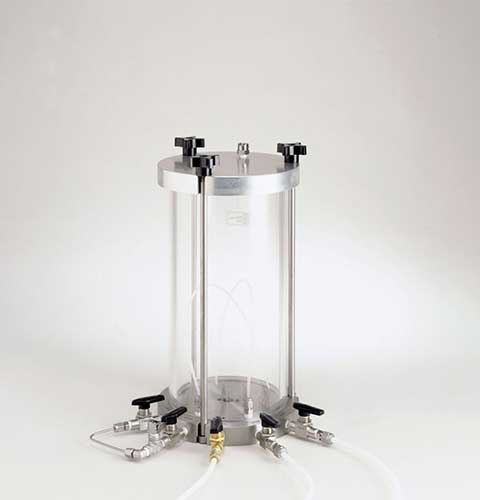

Tri-Flex 2 Permeability Test Cell

25-0690

Category:

Soils

Sub Category:

Permeability

Product Group:

Tri-Flex 2 Permeability Test Cell, Tri-Flex 2 One-Cell Permeability Test System

Maximum Pressure, psi 150
ASTM D5084 Yes
Description Tri-Flex 2 Permeability Test Cell

Specifications

Specimen Size1.4” (35 mm) to 4” (102 mm) diam. Using optional Cap and Base Sets, not included.
Head AssemblyAnodized aluminum with quick-disconnect
fill/vent port and three clamping rods.
Base AssemblyStainless steel with four stainless steel no-volume change ball valves for inflow and outflow ports and one brass no-volume change ball valve for lateral port.
CylinderClear acrylic.
Maximum Pressure15 0 psi (1,034 kPa).
TubingTeflon and stainless steel.
DimensionsApprox. 8” diam. x 15 ” h. (203 x 381 mm). Excluding valves.
WeightNet 23 lbs. (10.4 kg).

Specifications

Specimen Size1.4” (35 mm) to 4” (102 mm) diam. Using optional Cap and Base Sets, not included.
Head AssemblyAnodized aluminum with quick-disconnect
fill/vent port and three clamping rods.
Base AssemblyStainless steel with four stainless steel no-volume change ball valves for inflow and outflow ports and one brass no-volume change ball valve for lateral port.
CylinderClear acrylic.
Maximum Pressure15 0 psi (1,034 kPa).
TubingTeflon and stainless steel.
DimensionsApprox. 8” diam. x 15 ” h. (203 x 381 mm). Excluding valves.
WeightNet 23 lbs. (10.4 kg).

1.4" Porous Stones

25-4461

1.4" diameter porous stones (pack of 2)

4.0" Porous Stones

25-7761

4" diameter porous stones (pack of 2)

Membrane Sealing Ring 100mm Diameter. Pack of 10.

25-7631

100 mm diameter membrane sealing ring (Pack Of 10).

Membrane Sealing Ring 70mm Diameter Pack of 10.

25-6461

70 mm diameter membrane sealing ring (Pack Of 10).

Porous Disc 100mm Diameter Pack of 2.

25-7661

100 mm diameter porous disc (Pack of 2).

Porous Disc 70mm Diameter Pack of 2.

25-6561

70 mm diameter porous disc (pack of 2).

Porous Stones 2.8"

25-6721

2.8" diameter porous stones (pack of 2)

Pressure Interface Chamber

25-0695

Stainless steel lower chamber and base construction with Viton diaphragm and O-rings.  Supplied with all necessary valves and tubing.  The Pressure Interface Chamber (PIC) is used during permeability test application involving toxic permeants. The chambers provide a closed system for toxic liquids entering and exiting the test cell.  Weight: 5.5…

Rubber Membrane 100mm/4 Inch Diameter. Pack of 10

25-7621

100 mm/4 Inch diameter rubber membrane (pack of 10). 300 mm length x 0.5 mm thickness.  Black sealing rings pictured are sold seperately (25-7631 100 mm).

Rubber Membrane 70mm/2.8 Inch Diameter. Pack of 10.

25-6441

70 mm / 2.8" mm diameter rubber membrane (Pack Of 10).
